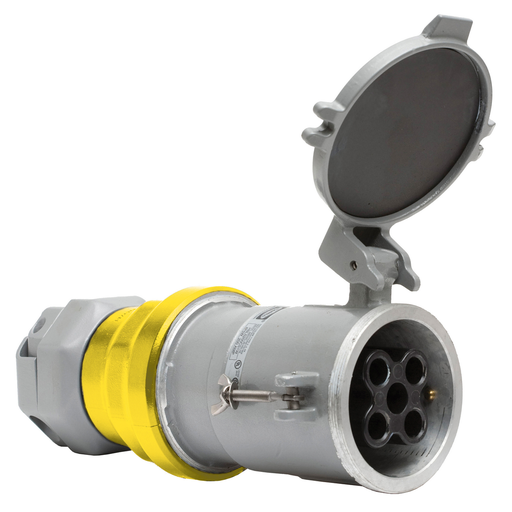

Hubbell M5200CS1 Marine PS, INS, CONN, 4P5W, 200A 600V, S1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # M5200CS1 | Codale Part # 3422638
$5,637.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 200A 600V AC, 4- Pole 5-Wire Grounding Style 1, Gray

Technical Information

Amperage
200 Amp
Applications
High Ampacity Connections, Shore Devices
Conductor Size
1 AWG-250 kcmil
Current
200 Amp
Dielectric Strength
3000 V
Grade
Marine
Grounding
Yes
Material
Composite
Mounting Type
Cord
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
4 Wire
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Corrosion Resistant,Standard Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Standard Size
Voltage
250 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585161822
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358516182
Weight
13.6500 lb

Dimensions

Height
6.3 Inch
Length
15.9 Inch
Width
8.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
