Burndy 1PL42 Blktap,Sgl,2 Prts, 14-4

Manufacturer: Hubbell-Burndy | Catalog # 1PL42 | Codale Part # 3423422
$27.74/ea
ea
Log in or register to view your price, purchase history, and more!
296 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
UV Rated UNITAP ,#14 - 4.

Technical Information

Applications
For Indoor Use Only, Copper Or Stranded Aluminum
Conductor Size
10 AWG
Connection Type
Multi Tap
Direct Burial?
No
Insulation Type
Plastisol
Material
Aluminum
Plated?
No
Plating Type
Unplated
Size

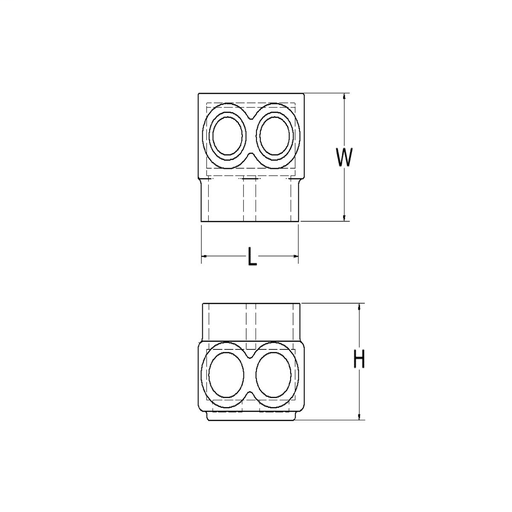

1.38 IN Height X 1.16 IN Width X 1.52 IN Length
Temperature Rating
194degrees F
Type
BIBS, Multi-Port
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810287491
Product UPC
78181028749
Weight
0.0600 lb

Dimensions

Height
1-1/4 Inch
Length
1.08 Inch
Overall Length
27 mm
Width
1.16 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping
  • Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area
  • Range-taking capability reduces the number of connectors necessary to carry in inventory
