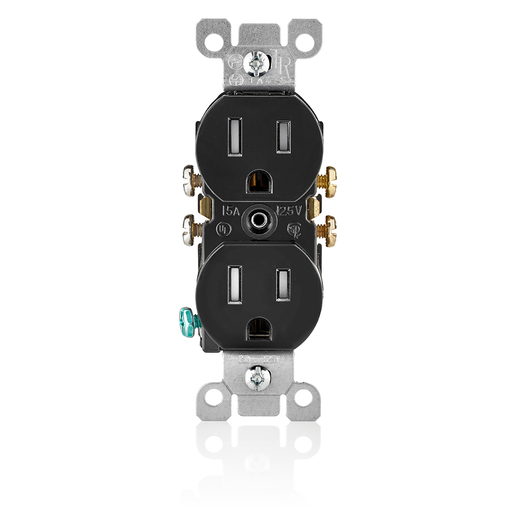

Product image for Leviton T5320-E  15A 125V Tamper-Resistant Duplex Receptacle, Residential Grade, Grounding, Quickwire Push-In & Side Wired - Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

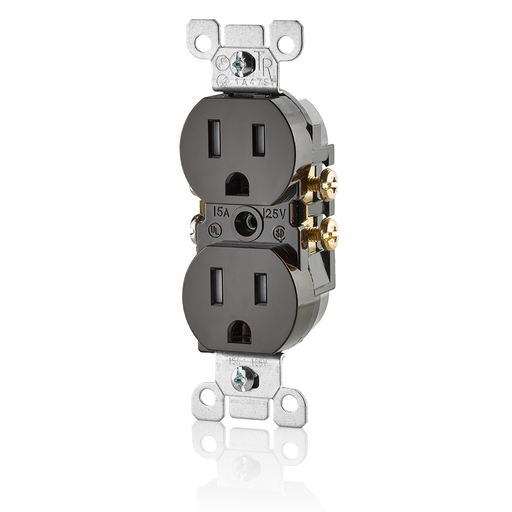

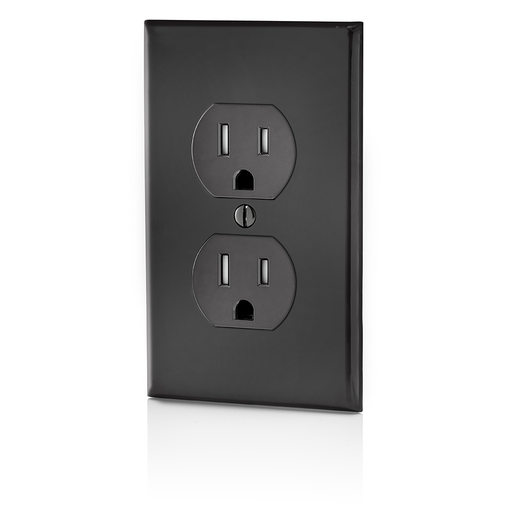

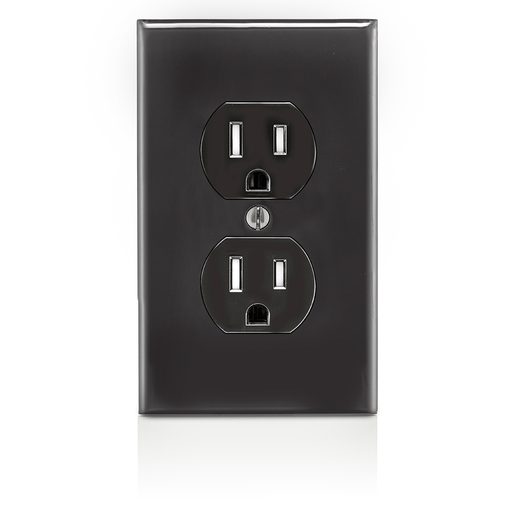

Leviton T5320-E  15A 125V Tamper-Resistant Duplex Receptacle, Residential Grade, Grounding, Quickwire Push-In & Side Wired - Black

Manufacturer: Leviton | Catalog # T5320-E | Codale Part # 3423664
$215.87/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
38 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, Tamper Resistant, Duplex Receptacle, Residential Grade, Grounding, Black

Technical Information

Amperage
15 Amp
Applications
For Residential use
Device Type
Duplex Receptacle
Grade
Residential
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Standard
CSA,UL
Style
Straight Blade
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 Volt
Wire Count
3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT RESIDENTIAL

General Product Info

12-Digit UPC
078477381908
Color
Black
Product UPC
07847738190

Dimensions

Height
4.2 Inch
Length
1.31 Inch
Warranty Length
2 yr
Width
0.98 in

Certifications and Compliance

Country of Origin
USA
Features
  • Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Shallow depth for maximum wiring room
  • Heavy-gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
  • Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
  • TR symbol on strap assures they meet the latest NEC requirements
  • Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
  • Limited 2-year warranty
  • SAFE Tamper-resistant offers protection from electrical shocks
  • DURABLE Impact-resistant thermoplastic nylon construction
  • EASY Quickwire push-in and side wiring for easy installation
  • CONVENIENT TR symbol on strap assures they meet the latest NEC requirements
NEMA
  • 5-15R
