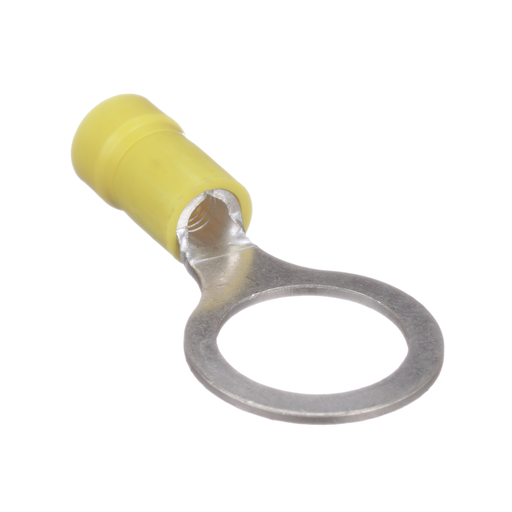

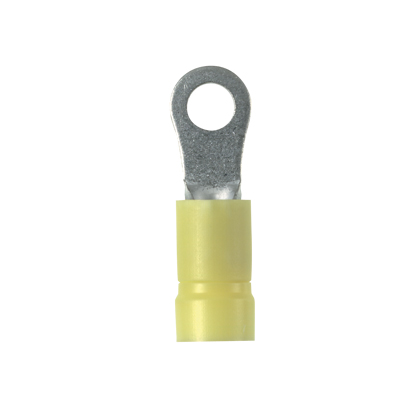

Panduit PV10-12R-Q 12-10 AWG Vinyl Insulated Ring Terminal

Manufacturer: PANDUIT | Catalog # PV10-12R-Q | Codale Part # 3425284
$365.17/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Ring Terminal, 12 . 10 AWG, 1/2" stud size, vinyl insulated, funnel entry, standard package.

Technical Information

Barrel Type
Insulation Support, Brazed Seam
Color Coding
Yellow
Conductor Size
10 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Min Operating Temperature
105 degrees C
Size
1/2"
Standard
CSA,E2186,UL
Tc Connection
Funnel
Temperature Rating
221 degrees F
Tongue Width
0.72 in
Type
Bell End
Voltage
600 Volt
Wire Size
4.0-6.0 AWG

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983124503
Color
Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498312450
UNSPSC
39121409
Weight
0.0026 lb

Dimensions

Outer Diameter
0.53 in
Overall Length
1.46 in
Width
0.72 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212
