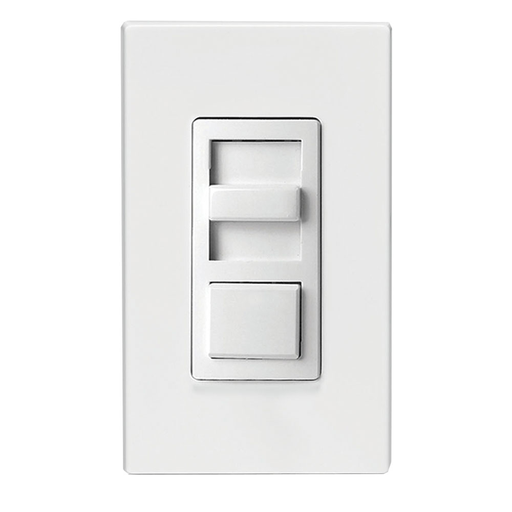

Leviton IPL06-10Z 120 VAC 600 W 1-Pole 3-Way White/Ivory/Light Almond Electro Mechanical Incandescent Preset Slide Dimmer

Manufacturer: Leviton | Catalog # IPL06-10Z | Codale Part # 3425627
$52.47/ea
ea
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

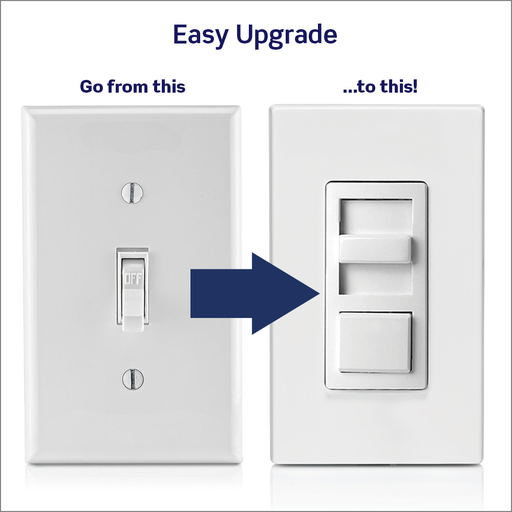

Replace a wall light switch with an IllumaTech dimmer switch. 150W LED, 600W incandescent/halogen, 60Hz, single pole or 3-way installation. Can be installed with or without a neutral wire, use with Decora wallplate or Decora Plus Screwless Wallplate sold separately . White with ivory and light almond faceplates

Technical Information

Action
Standard ON/OFF
Applications
Commercial
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
32 To 130 degrees C
Power Rating
600 W, 600 VA, 150 W
Size
4.15 H x 2.12 W x 1.41 D IN
Standard
CSA,UL
Style
IllumaTech
Switch Type
3-Way,Single-Pole
Type
Slide
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®, IllumaTech™

General Product Info

12-Digit UPC
078477561867
Color
Ivory,Light Almond,White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847756186
Weight
0.3670 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Integrated linear full-range slide control for easy, precise operation
  • Separate On/Off switch, to preserve set light level when turned off
  • Slim, compact housing fits easily into a standard wall box
  • Works with existing wiring, no neutral wire required for installation
  • Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool
  • Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
  • Control the lights from two locations using the IPL06 in the main location and a 3-way switch (sold separately) in the second location
  • Easily change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
  • CONVENIENT An easy way to create a big impact for a minimal cost and customize the light level in any room, for any occasion and in any home
  • EASY TO INSTALL Slim profile for easier installation. Works with existing wiring, no neutral wire required for installation
  • PRACTICAL Designed to dim LED bulbs. To find out which LED bulbs pair best, visit our online bulb compatibility tool by clicking the \"find an LED bulb\" button below
  • CUSTOMIZEABLE Adjustable minimum and maximum dimming range for LED bulbs to help eliminate flicker, maximize energy savings, and optimize ambiance
  • VERSATILE Control the lights from two locations using the IPL06 in the main location and a 3-way switch (sold separately) in the second location
  • STYLISH Easily change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
Patents
  • US11903105
  • US8664886
