Panduit MC25X37IG2 Slotted Metric Duct, PVC, 25mm x 37mm x 2M, Light Gray

Manufacturer: Panduit | Catalog # MC25X37IG2 | Codale Part # 3427337
$137.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

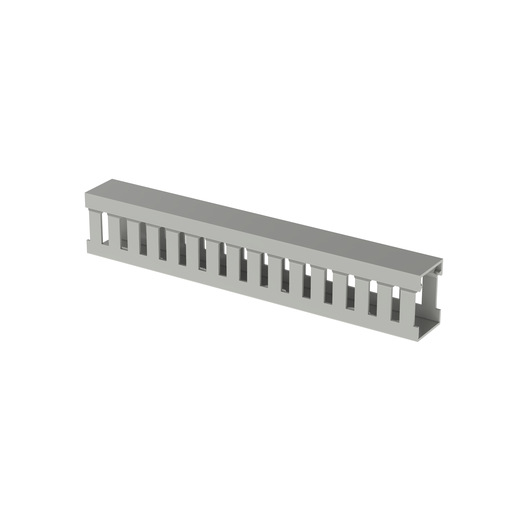

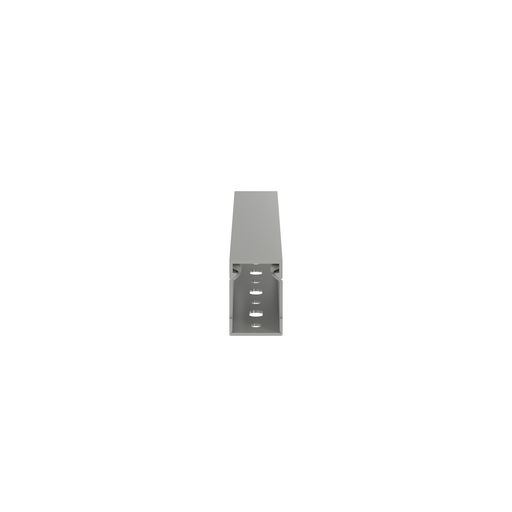

The MC25X37IG2 Panduct Lead-Free PVC Narrow Slot Wiring Duct is 24.6 mm x 35.8 mm (0.97" x 1.41"). It features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. Cover included. Color - International Gray. 20 Meters (10 sticks each) - Bases & Covers per package.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
DIN Standard Mounting Holes
Size
0.97 x 1.41 IN
Tc Connection
DIN Mounting Holes
Type
Wiring Duct Base With Cover

Packaging

Pkg Qty
2

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983742912
Color
International Gray
Environment
Indoor
Product UPC
07498374291
Weight
1.3040 lb

Dimensions

Height
1.41 Inch
Length
6.6 Foot
Overall Length
6.5 ft
Width
0.97 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
