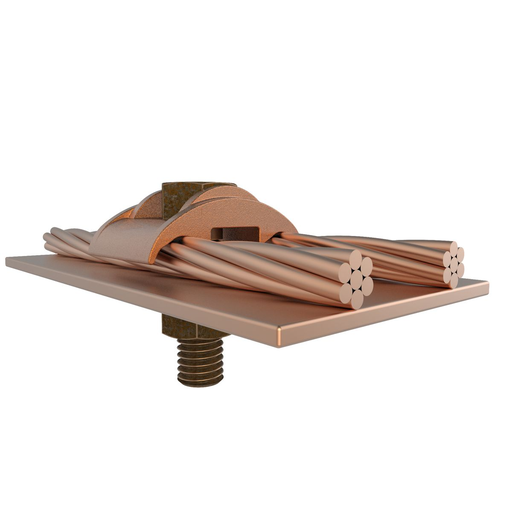

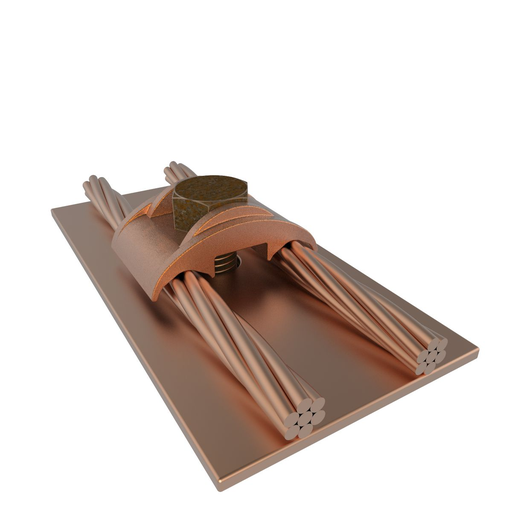

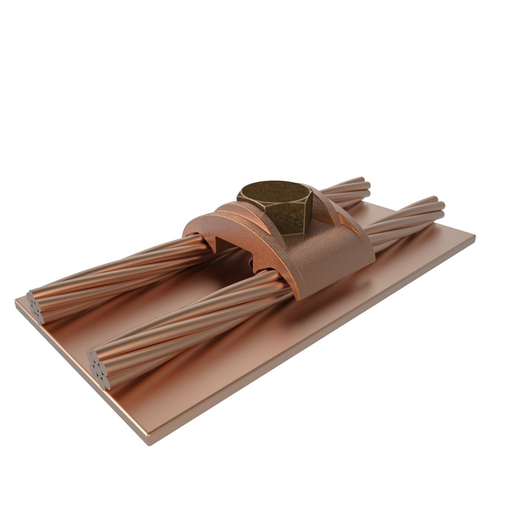

Product image for Burndy GCM29 Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,207 H
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Burndy GCM29 Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,207 H

Manufacturer: Hubbell-Burndy | Catalog # GCM29 | Codale Part # 3427386
$52.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,2.07 H.

Technical Information

Applications
For Joining a Wide Range of Two Copper Parallel Cables and Direct Burial in Concrete or Ground
Conductor Size
2/0 AWG-250 kcmil
Material
Copper
Plated?
No
Plating Type
Unplated
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810001776
Product UPC
78181000177
Weight
0.3700 lb

Dimensions

Height
2.07 Inch
Length
1-1/4 Inch
Overall Length
32 mm
Width
1.90 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • High copper alloy ground connector for joining a wide range of 2 parallel cables to 1/2\" thick bar
  • Type GC separates cable from bar
  • Type GCM clamps cable direct to bar surface
  • One wrench installation
  • UL467 Listed
  • Suitable for Direct Burial in earth or concrete
