Hoffman PTS66 Support Bracket, fits 600 wide, Aluminum

Manufacturer: nVent Hoffman | Catalog # PTS66 | Codale Part # 3428034
$334.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

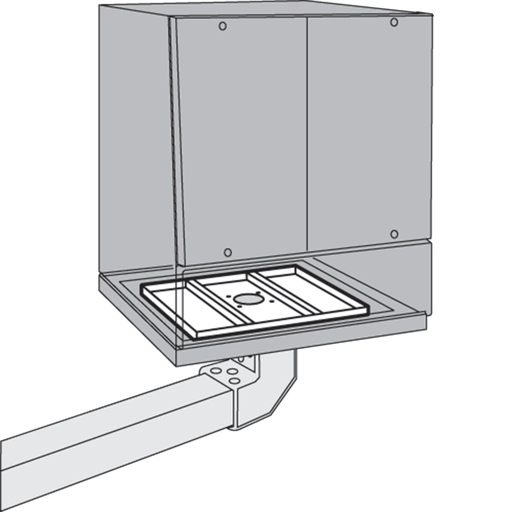

A Support Bracket is required when suspending a 600-mm wide ProLine Sloped-Front HMI Enclosure from above. The rigid bracket mounts inside the enclosure to stiffen its top. It can also be used inside a base for ProLine Sloped-Front HMI Enclosure when mounting from below. Bracket has prepunched holes to fit Compact Series 4 System 80 Flange Couplings as well as Swivel Tilts. Bracket is used as a template to drill holes in the enclosure.

Technical Information

Applications
Controls and Drives
Material
Aluminum
Size
19.38 in L x 17-3/4 in W x 1-1/8 in T
Type
Rack

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510369996
Color
Unpainted
Finish
Natural
Product UPC
78351036999
Used With
600 mm Enclosure, Inside a Base for Series 4 System 50, 60 and 80 Sloped Fronts When Mounting From Below
Weight
8.7 lb

Dimensions

Depth
17-3/4 Inch
Height
1.38 Inch
Length
22 Inch
Thickness
0.125 in
Width
19.38 in
DISK UNSPSC
39121325
Features
  • Bracket is furnished with mounting bolts and seals
