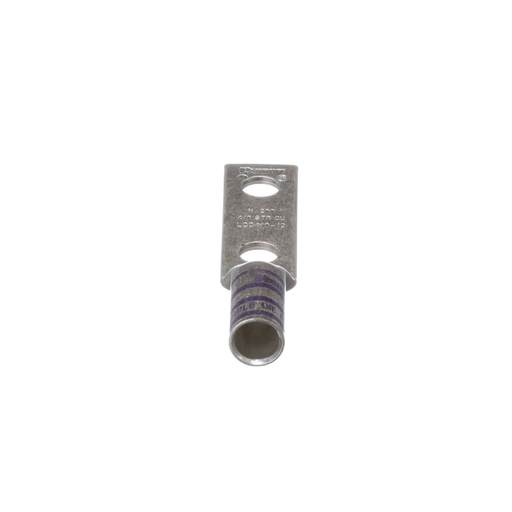

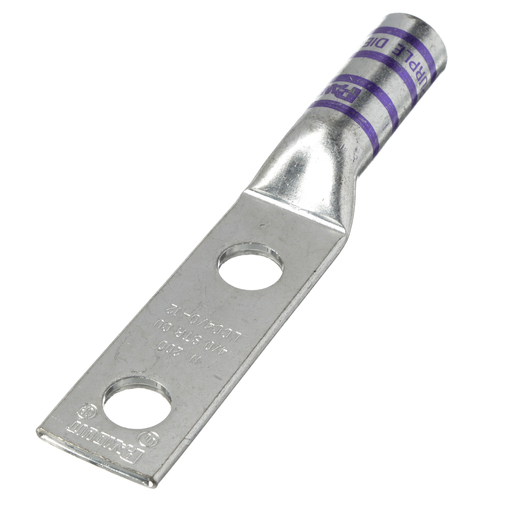

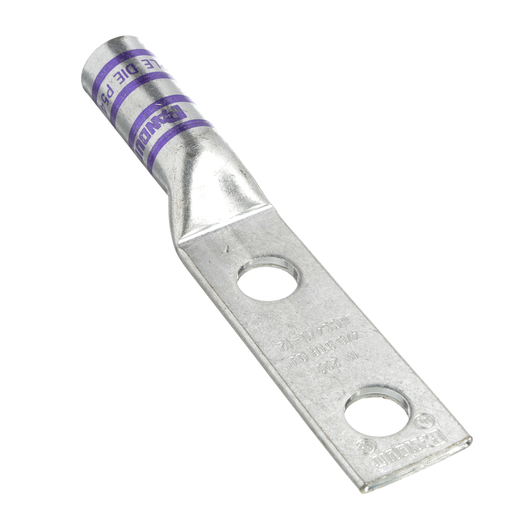

Panduit LCC4/0-12-X 2-Hole 4/0 AWG 1/2 Inch 1.75 Inch Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCC4/0-12-X | Codale Part # 3428553
$4,215.05/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
424 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The LCC4/0-12-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
1.56 in
Barrel Type
Long without Inspection Window
Cable Size
AWG
Color Coding
Purple
Conductor Size
4/0 AWG
Material
Copper
Number of Holes
2 Hole
Size
4/0 AWG Code
Standard
ANSI C-73
Stud Size
1/2 in
Tongue Thickness
0.14 in
Tongue Type
Standard
Tongue Width
1.06 in
Type
Type LCC
Voltage
35 kV

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983902408
Color
White
Finish
Tin Plated
Product UPC
07498390240
Weight
0.2100 lb

Dimensions

Outer Diameter
0.71 in
Overall Length
5.13 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
