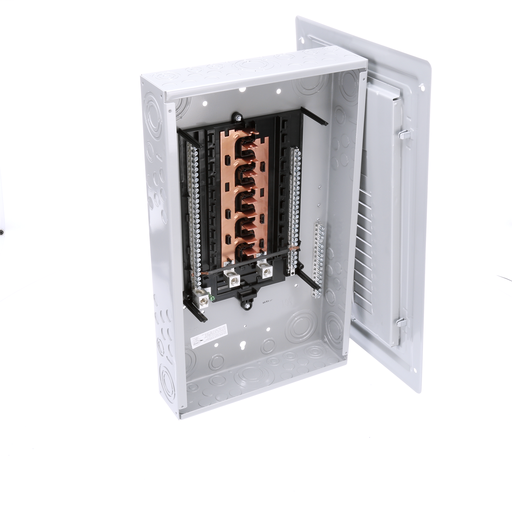

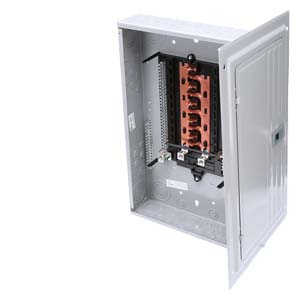

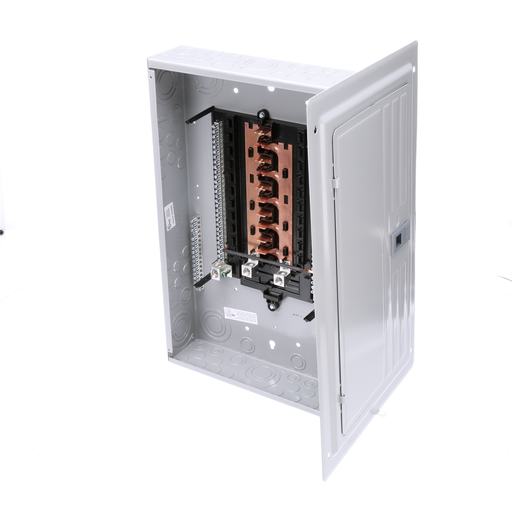

Siemens P2030L1150CU 120/240 VAC 150 Amp 1-Phase 3-Wire NEMA 1 Main Lug/Convertible Load Center

Manufacturer: Siemens | Catalog # P2030L1150CU | Codale Part # 3428943
$216.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 20 1-INCHSPACES ALLOWING MAX 30 CIRCUITS. 1-PHASE 3-WIRE SYSTEM RATED 120/240V(150A) 100KA INTERRUPT. SPECIAL FEATURES COPPER BUS, INTERCHANGEABLEMAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.. REPLACED BY PN2040L1150C. AVAILABLE 4/1/2020

Technical Information

Amperage
150 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
N/A
Cover Type
PL Series
Enclosure
TYPE1
Interrupt Rating
100 kAIC
Mounting Type
FLUSH / SURFACE
Number of Phases
1 Phase
Number of Spaces
20
Size
2426.5
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120/240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
UL

General Product Info

12-Digit UPC
040892650143
Product UPC
04089265014
Weight
28.0000 lb
