Burndy YAV10BOX CU Compression Terminal Code Conductor, Bevelled Entry, 1 Hole/W/InspWindow, #14-#10(Str) #12-#10(Sol), 600V-35kV, #8-#10 Stud, Standard Barrel, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # YAV10BOX | Codale Part # 3429790
$109.30/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
CU Compression Terminal Code Conductor, Bevelled Entry, 1 Hole/W/InspWindow, #14-#10(Str) #12-#10(Sol), 600V-35kV, #8-#10 Stud, Standard Barrel, Tin Plated.

Technical Information

Applications
For Use on Copper Commercial (Code) Cable, Type AN Aircraft Cable and Extra Flexible Conductors, Industrials, Hospitals, Electric Utilities, Shipboard and Marine, Computers, Steel Mills, Mining Equipment
Barrel Type
Standard
Cable Size
12 - 10 AWG
Conductor Size
12-10 AWG
Connection Type
Ring,Terminal
Material
Copper
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin
Strip Length
7/16 in
Stud Size
#10, #8
Tongue Angle
Straight
Tongue Type
Ring
Type
Straight, Uninsulated
Voltage
35 kV

Manufacturer Information

Brand
Burndy
Sub Brand
Hylug™

General Product Info

12-Digit UPC
781810541500
Color
Black,White
Finish
Electro Tin Plated
Product UPC
78181054150
Weight
0.3500 lb

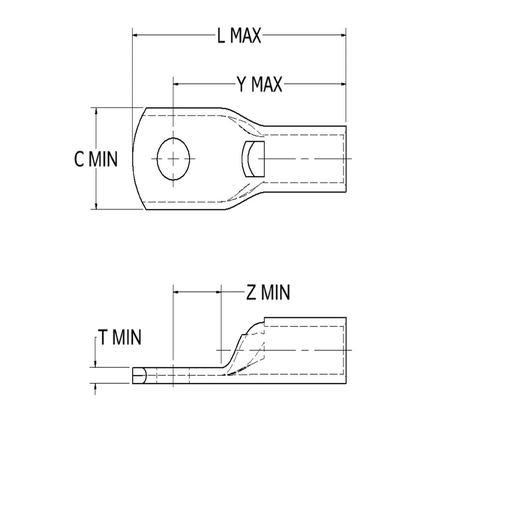

Dimensions

Height
0.21 Inch
Length
0.97 Inch
Overall Length
0.97 in
Pad Width
0.38 in
Width
0.38 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Standards - Industry Standards Met
  • UL467
  • Military Specified (Mil-Spec)
Industry Standard(s)
  • UL467
  • Military Specified (Mil-Spec)
Conductor Type
  • CU C Solid-Size
  • CU C Str-Size
