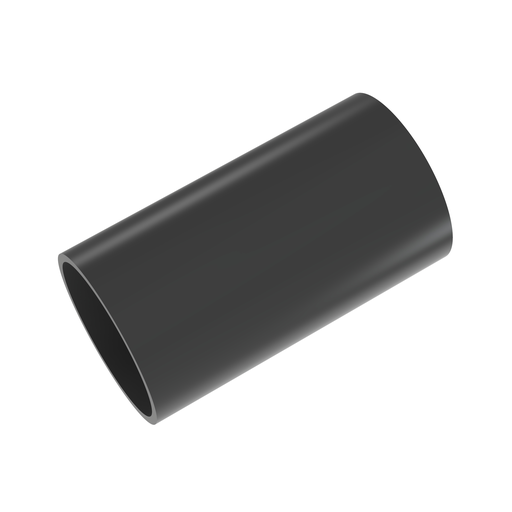

Panduit HST3.0-48-2 3 Inch (76.2 mm) Diameter Heat Shrink Tubing

Manufacturer: PANDUIT | Catalog # HST3.0-48-2 | Codale Part # 342981
$165.51/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

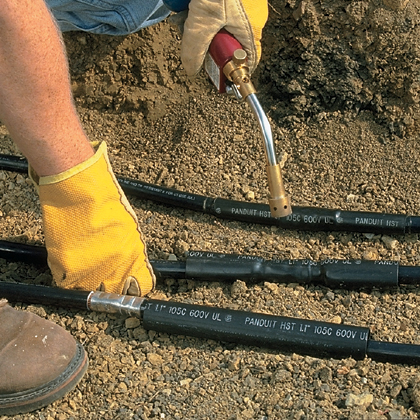

The HST3.0-48-2 Thick Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in outdoor, wet locations. Thick wall for direct burial. Voltage rating: UL 486D Listed for 600 V 90.C continuous use. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 3" (76.2 mm) dia. 48" (1219.2 mm) length. Color Black.F894 2 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
ANSI C-73
Temperature Rating
-67 to 230 degrees F
Type
Flame Retardant

Packaging

Pkg Qty
2

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Wet-Shrink™

General Product Info

12-Digit UPC
074983616954
Color
Black
Product UPC
07498361695
Weight
4.1726 lb

Dimensions

Inside Diameter
25.4 mm
Outside Diameter
76.2 mm
Overall Length
4 ft
Thickness
4.1 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Canada

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL224 VW-1; UL/UR: E342365; UL Listed: E173379; CSA: 244528; Mil Spec: AS23053
