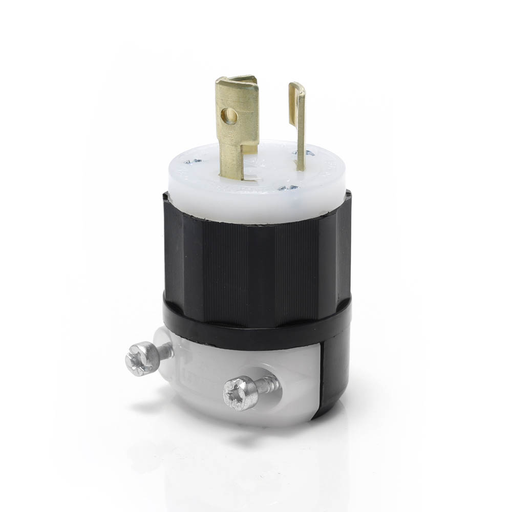

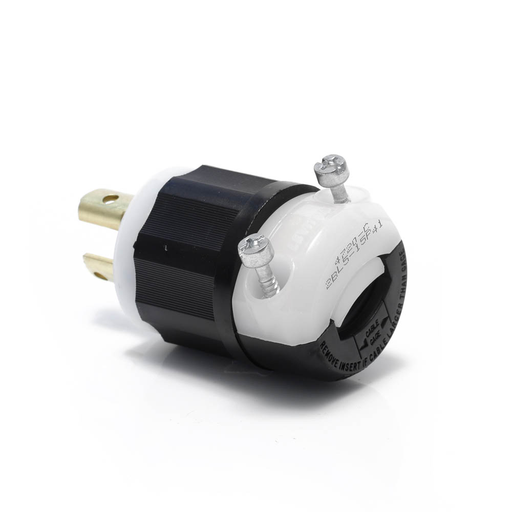

Leviton 4720-C 125 Volt 15 Amp 2-Pole 3-Wire NEMA L5-15P 1/2 Hp Black/White Nylon Grounding Locking Plug

Manufacturer: Leviton | Catalog # 4720-C | Codale Part # 3432157
$34.17/ea
ea
Log in or register to view your price, purchase history, and more!
76 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White

Technical Information

Amperage
15 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S, SO, SVT
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Cable
NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
1.53 Diameter X 1.98 L IN
Standard
ANSI C-73
Tc Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477795491
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847779549
Weight
0.1880 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Black
NEMA
  • L5-15P
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes (.245\"-.700\")
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
  • Ideal for motor loads, such as shop vacs and pool pumps, and generators
