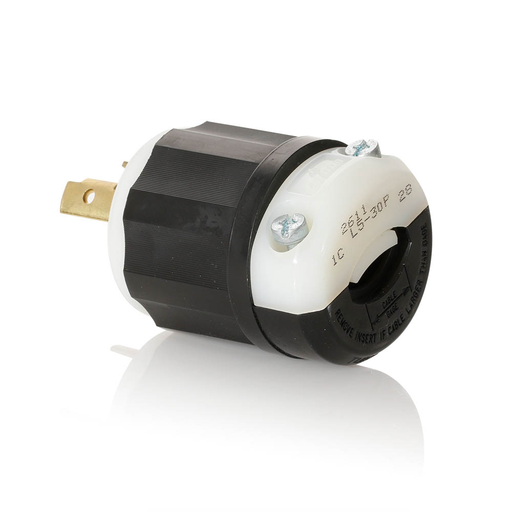

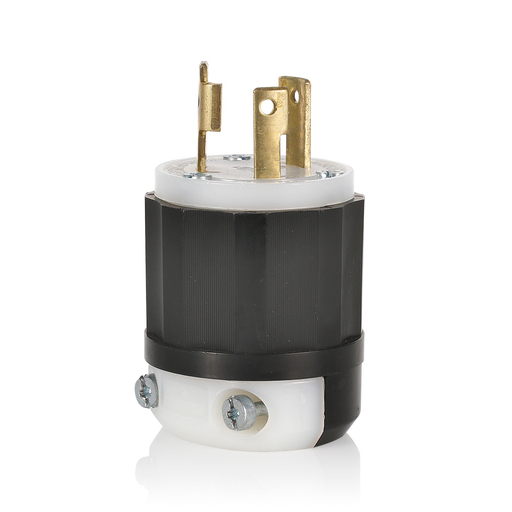

Leviton 2611 30amp 125v Black Locking Plug, 2-Pole 3-Wire, Industrial Grade

Manufacturer: Leviton | Catalog # 2611 | Codale Part # 3432162
$65.01/ea
ea
Log in or register to view your price, purchase history, and more!
24 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 125 Volt, NEMA L5-30P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White

Technical Information

Amperage
30 Amp
Applications
For Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO
Device Type
Locking Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Diameter X 2.47 L IN
Standard
ANSI C-73
Tc Connection
Screw, 6 Terminals
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Plug
Voltage
125 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477807989
Color
Black,White
Environment
Dry
Environmental Conditions
-40 to 60 C
Product UPC
07847780798
Weight
0.3400 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes (.245\"-.700\")
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
  • Ideal for generators and camper trailers
Color Variations
  • Black
NEMA

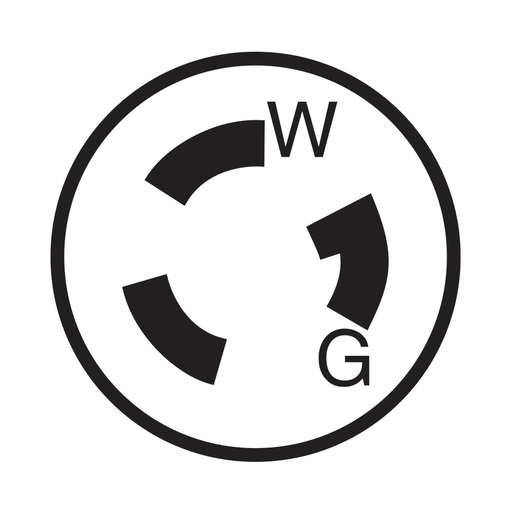

  • L5-30P
