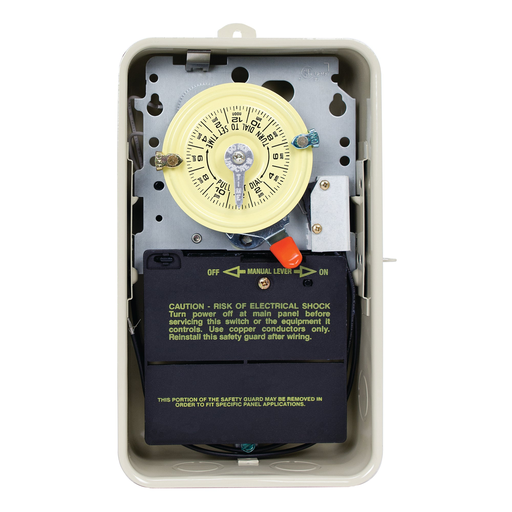

Intermatic T104R201 NEMA 3R Steel Case 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch with Pool Heater

Manufacturer: Intermatic | Catalog # T104R201 | Codale Part # 3432407
$292.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Heavy-duty mechanical time switches control a single load

Technical Information

Action
DPST
Applications
Heater Thermostat Control,Motor Control,Pump Control,Water Circulation
Contact Configuration
2 NO
Contact Rating
40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
Enclosure
NEMA 3R Steel
Frequency
60 Hz
Input Voltage
208-277 V
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Standard
CCSAus Certified
Switch Type
DPST
Type
Mechanical
Voltage
208-277 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275000070
Color
Gray
Product UPC
07827500007
Weight
3.7667 lb

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Highest motor load ratings in the industry
  • 12 ON/OFF operations per day
  • One ON and one OFF tripper included
  • Available with pool heater protection
  • Teeter-type terminals for multiple load connections
  • NA
