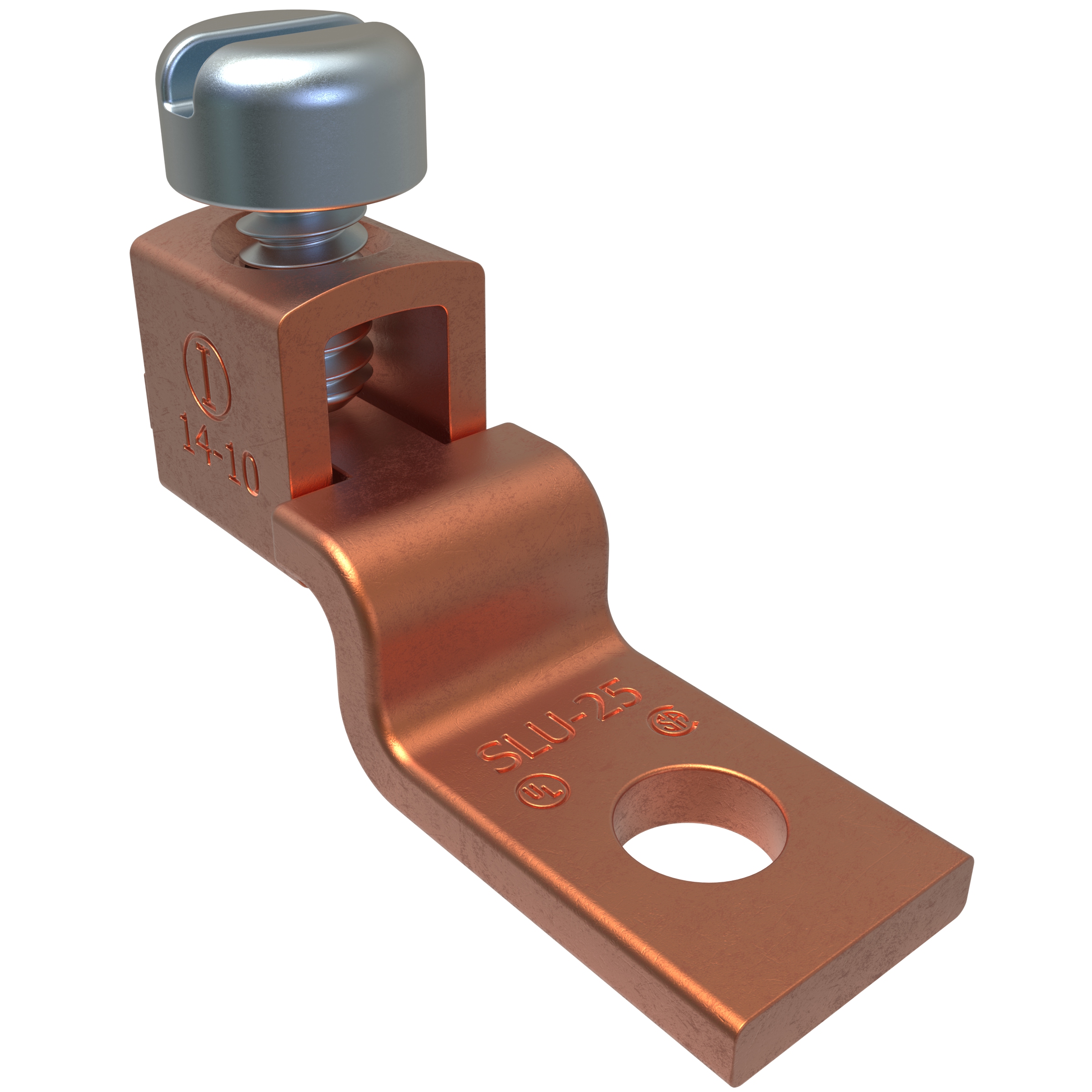

Product image for Ilsco SLU-25 Copper Mechanical Lug Offset, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco SLU-25 Copper Mechanical Lug Offset, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # SLU-25 | Codale Part # 3432921
$3.15 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size #6 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 10 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
#6
Conductor Material
Copper
Conductor Size
14-10 AWG
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
5/32 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
SLU, Offset Tongue, Straight
Voltage
35 Volt

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669828825
Color
Copper
Finish
Bare
Product UPC
78366982882
Weight
0.012 lb

Dimensions

Height
0.661 Inch
Length
1 Inch
Width
0.313 in
