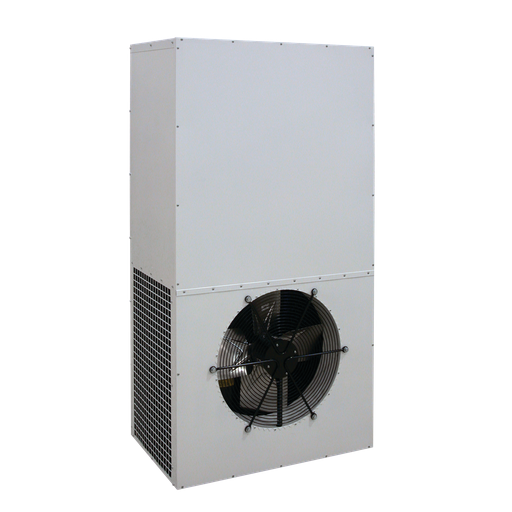

Product image for Hoffman T706026G150 T-SERIES Large Capacity Outdoor, 2" x 2" x 2", Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman T706026G150 T-SERIES Large Capacity Outdoor, 2" x 2" x 2", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # T706026G150 | Codale Part # 3432969
$38,362.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
T-Series Large Capacity Air Conditioners keeps equipment cool even at peak heat loads. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.

Technical Information

Amperage
40 Amp
Applications
For Industrial Automation, Telecommunications Equipment, Package Handling Equipment, Security and Defense Systems
BTU Hour
60000 BTU
Color Coding
RAL 7035
Control Type
Mechanical Thermostat
Enclosure Rating
3R, 4, 12, IP34, IP56
Enclosure Type
NEMA Type 3R, 4, 12, IP34, IP56
Material
Metal
Max Current
40.0 A
Max Temperature
122 degrees F
Min Temperature
-40 degrees F
Power Rating
17584 W
Temperature Rating
-40 to 122 degrees F
Type
Large
Voltage
230
Wattage
17584 Watt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
T-Series

General Product Info

12-Digit UPC
783510234133
Color
RAL 7035 Light Gray/Semi-Textured Powder Coated
Finish
Powder Coated
Product UPC
78351023413
Weight
468 lb

Dimensions

Depth
22.94 Inch
Height
26 Inch
Length
68 Inch
Thickness
1.21 mm
Width
35.86 in
DISK UNSPSC
40101701
Features
  • Compact footprint to minimize real estate and maximize capacity
  • Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
  • R-407C refrigerant
  • Models for 230 and 460 VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C
  • Reliable mechanical thermostat on enclosure side of the unit
  • Dual condenser-side air movers for performance redundancy
  • Painted galvanized sheet-metal cover for rugged factory and outdoor environments
  • Exterior and fully recessed mounting options on many models
  • Easy-mount flanges for simple installation
  • Every unit functionally tested before shipping
  • Standard Outdoor Air Conditioner models include telcordia GR-487 capable, thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control and enclosure heater
  • Mounting hardware, gaskets and user manual furnished with the unit
