HWDK HBL2310M7 LKG RCPT, 20A/125V,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2310M7 | Codale Part # 3434443
$53.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

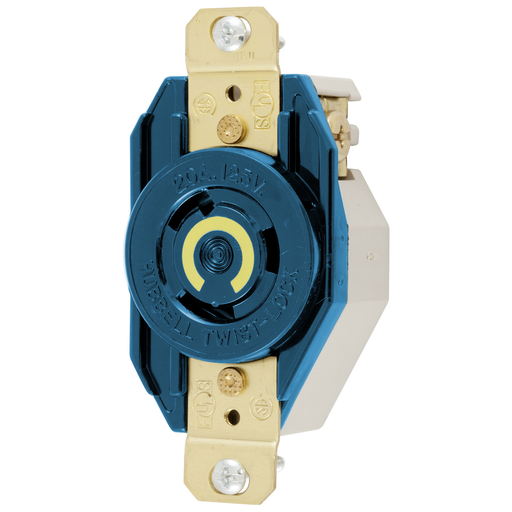

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, NEMA L5-20R, Screw Terminal, Nylon face, Back and side wired, Blue.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single Flush Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585005188
Color
Blue
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358500518
Weight
0.3000 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • High-impact, abuse-resistant nylon face
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Modified Color
