Hubbell HBL5492DUP Receptacle, 20A COMBO, 5&6-20R, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5492 | Codale Part # 3434447
$71.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Combo Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6- 20R, Brown, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty
Base Material
PET
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
2 hp
Material
Thermoplastic
NEMA
5-20R,6-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,No. 42 File 285,UL,UL498 File E2186
Style
Finder Groove Face
Tc Connection
Screw Terminal
Type
Combination Duplex Receptacles
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585435442
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358543544
Weight
0.25 lb

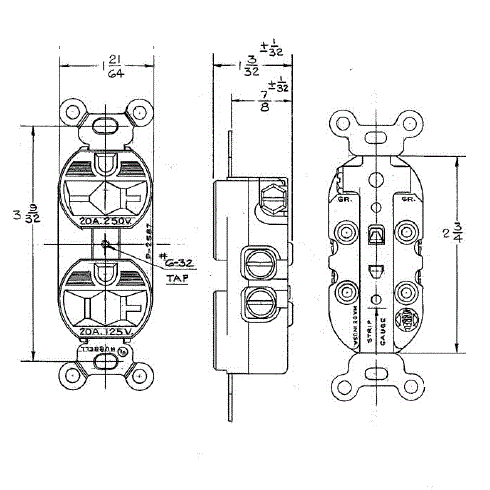

Dimensions

Height
0.88 Inch
Length
3.28 Inch
Width
1.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Receptacles
  • Combo Duplex
  • Industrial Grade
  • 2-Pole 3-Wire Grounding
  • Standard
