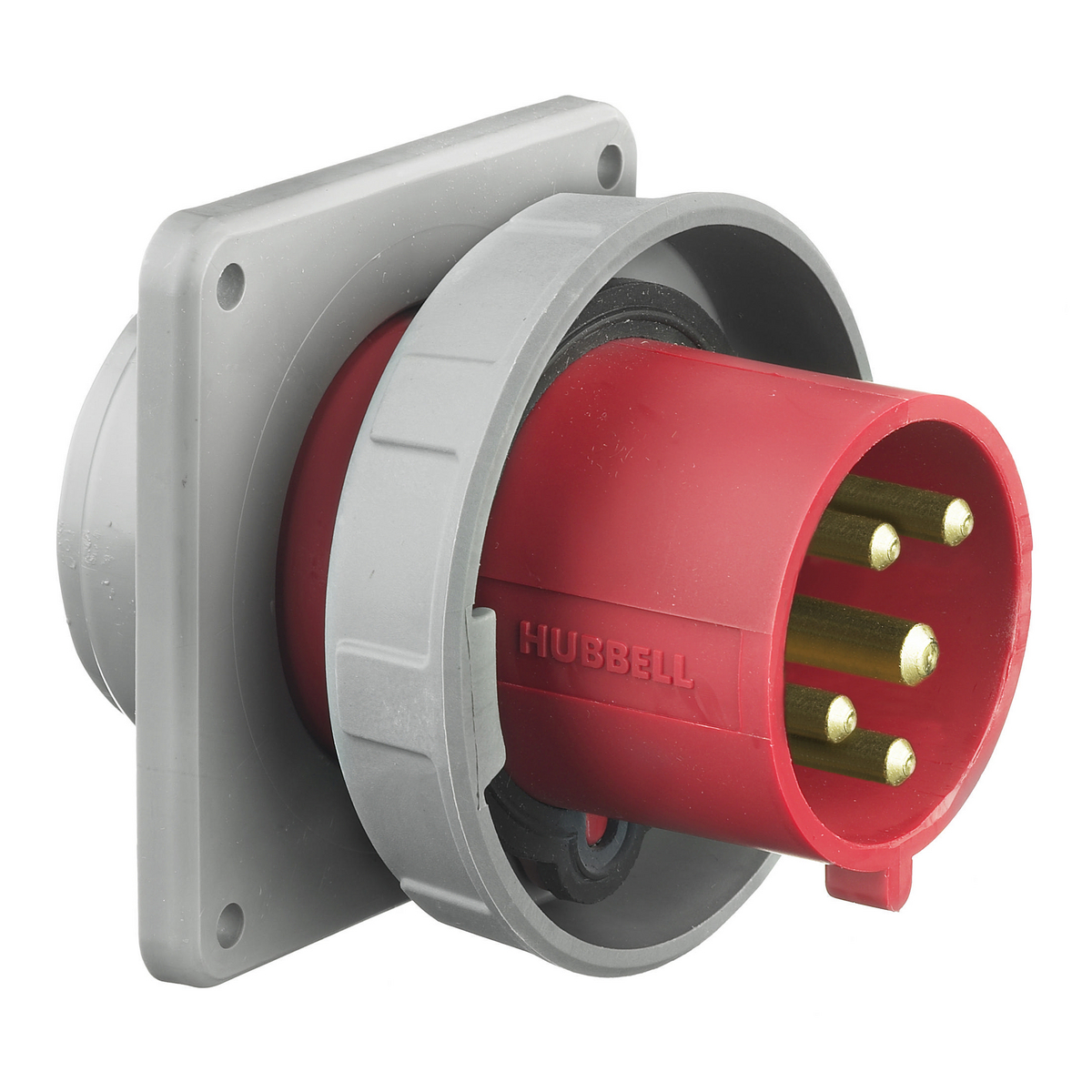

Hubbell HBL5125B6W INLET, 4P5W, 100/125A 220-415V, 4X/69K, PIN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5125B6W | Codale Part # 3434460
$908.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Flanged Inlet, 125A 380/415V, 4-Pole 5- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
125 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
3-1/0 AWG
Current
125 Amp
Material
Thermoplastic
Mounting Type
Screw, Surface
Number of Phases
Multi Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type
Single, Flanged, Standard Sized, Straight
Voltage
240/415 Volt
Wattage
51875 Watt
Wire Count
5
Wire Size
3-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Inlets

General Product Info

12-Digit UPC
783585405131
Color
Red
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540513
Weight
3.5 lb

Dimensions

Height
5-3/4 Inch
Length
7 Inch
Width
6.380 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Watertight
  • Raised collar surrounds each phase pin
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstand 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Voltage Rating
  • 220/380 V V
  • 240/415 V V
Industry Standard(s)
  • CSA Certified File LR280C
  • UL Classified to IEC 60309-1 IEC 60309-2
  • UL Listed, File E146032
