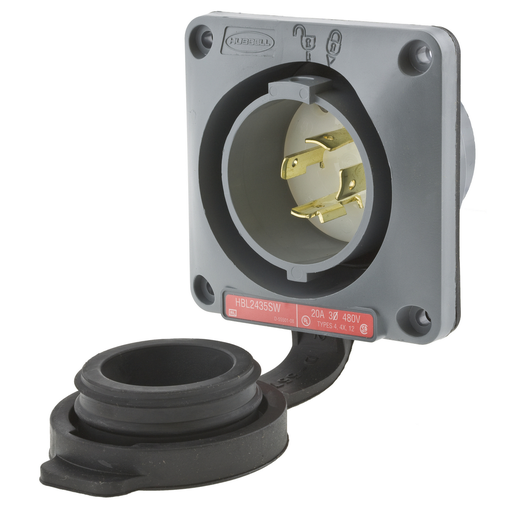

Hubbell HBL2435SW Locking WT S/SHRD INLET, 20A3P 480V, L16-20P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2435SW | Codale Part # 3435171
$253.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

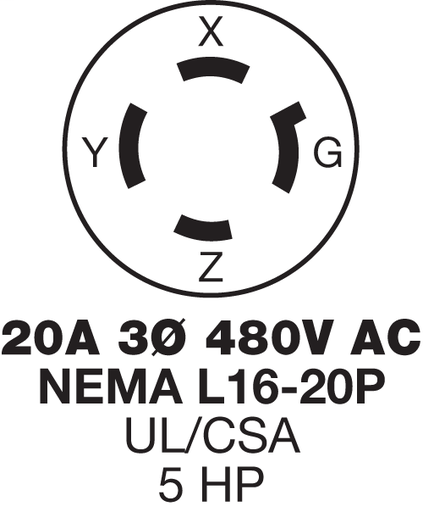

Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20P, Screw Terminal , Gray.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Current
20 Amp
Dielectric Strength
2000 V
Horsepower
5 hp
Material
Thermoplastic
Mounting Type
Surface
NEMA
L16-20P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminals
Temperature Rating
-40 to 75 degrees C
Type
Extra Heavy-Duty, Industrial Grade
Voltage
480 Volt
Wattage
9600 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231488
Color
Gray,White
Environmental Conditions
Watertight
Product UPC
78358523148
Weight
0.65 lb

Dimensions

Height
2.44 Inch
Length
3-3/4 Inch
Width
3.300 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Standard Product
