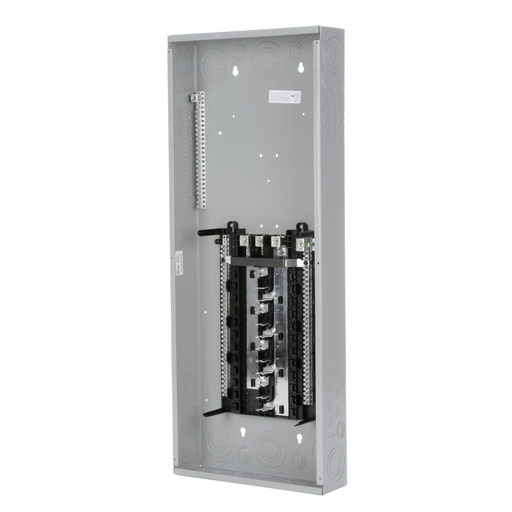

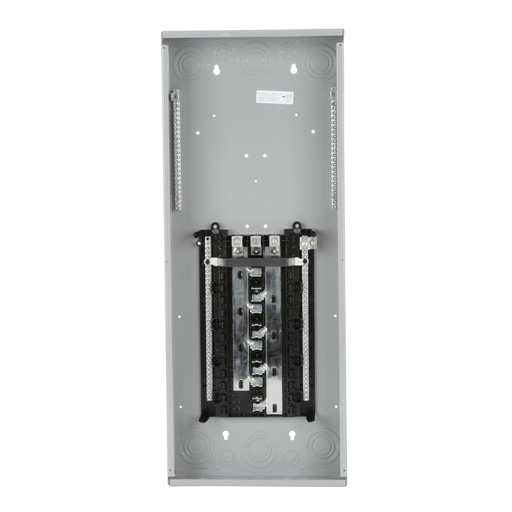

Siemens P2442L3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 1 Main Lug/Convertible Load Center

Manufacturer: Siemens | Catalog # P2442L3200CU | Codale Part # 3435548
$616.10/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. MAIN LUG WITH 24 1-INCH SPACES ALLOWING MAX 42 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 100KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE1 ENCLOSURE FOR INDOOR USE.

Technical Information

Amperage
200 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
N/A
Cover Type
PL Series
Enclosure
TYPE1
Interrupt Rating
100 kAIC
Mounting Type
FLUSH / SURFACE
Number of Phases
3 Phase
Number of Spaces
24
Size
3542
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
UL

General Product Info

12-Digit UPC
662643853810
Product UPC
66264385381
Weight
29.000 lb

Dimensions

Height
38-1/2 Inch
Length
16 Inch
Width
5.750 in

Certifications and Compliance

Country of Origin
Mexico
