Hubbell HBL5661 Brown 15A 250V Single Receptacle. Extra Heavy Duty Spec Grade

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5661 | Codale Part # 3436828
$31.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Single, Specification Grade, 2-Pole 3-Wire Grounding, 15A 250V, 6-15R, Brown, Single Pack

Technical Information

Amperage
15 Amp
Applications
For Conduit Bending
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
1.5 hp
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Guide RTRT Fed Spec WC596G,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
250 Volt
Wattage
3750 Watt
Wire Count
3
Wire Size
12-10 W

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013992
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
Product Series
Extra Heavy Duty
Product UPC
78358501399
Weight
0.15 lb

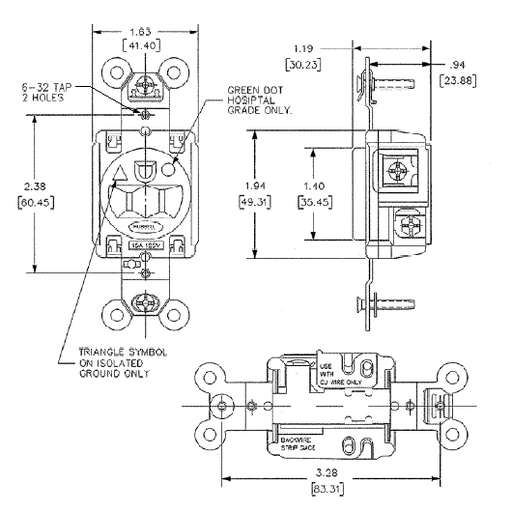

Dimensions

Height
1.19 Inch
Length
1.94 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece brass integral ground strap
  • Unique bypass contact design
  • Standard
