Hubbell SNAP1223WNA SWITCH, SNAPCONN, 3W, 20A120/277V, WH, NA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP1223WNA | Codale Part # 3437394
$8.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Three Way, 20A 120/277V AC, White Toggle, North American

Technical Information

Action
Snap
Actuator
Toggle
Amperage
20 Amp
Applications
For General Purpose
Base Material
Thermoplastic
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial/Commercial
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
4.18 in x 1.3 in x 1.74 in
Standard
CSA,E2186,UL
Style
Three Way
Switch Type
Toggle
Tc Connection
Connectorized
Toggle Material
Thermoplastic
Type
General Purpose, Standard, Heavy Duty, 2-Position
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
783585189444
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
General Purpose
Product UPC
78358518944
Weight
0.1350 lb

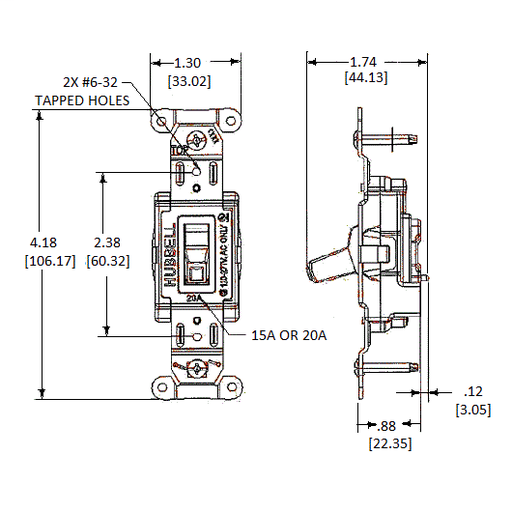

Dimensions

Height
1.74 Inch
Length
4.18 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Thread cleaning captive mounting screw
  • Automatic self-grounding staple assures continuity to wall box
