Panduit JBP1IW Single-Gang Power Rated 2-Piece Outlet Box

Manufacturer: Panduit | Catalog # JBP1IW | Codale Part # 343819
$14.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

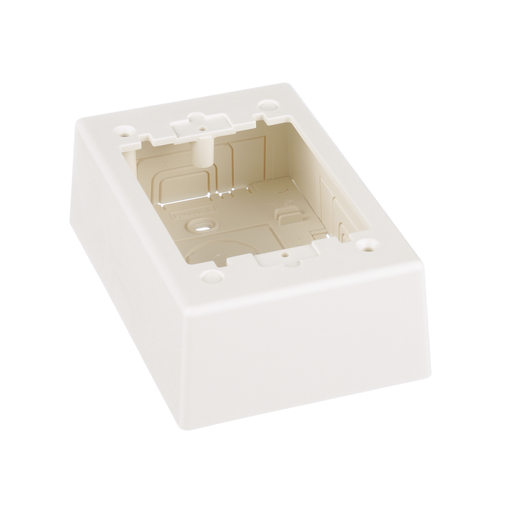

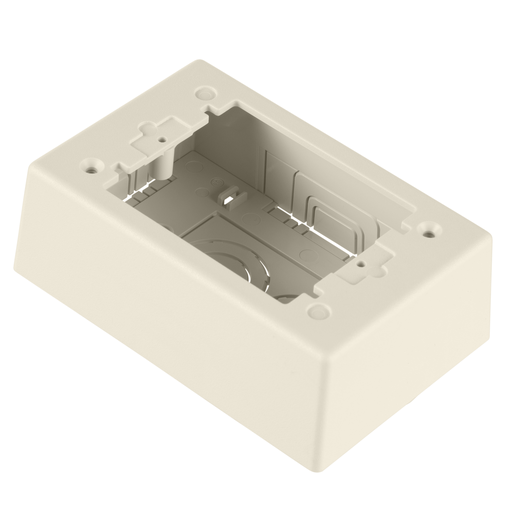

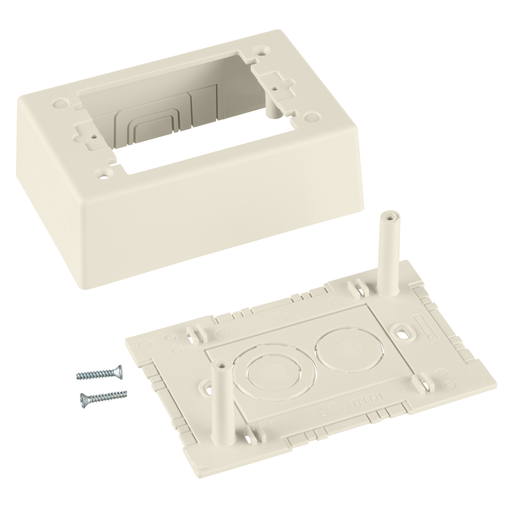

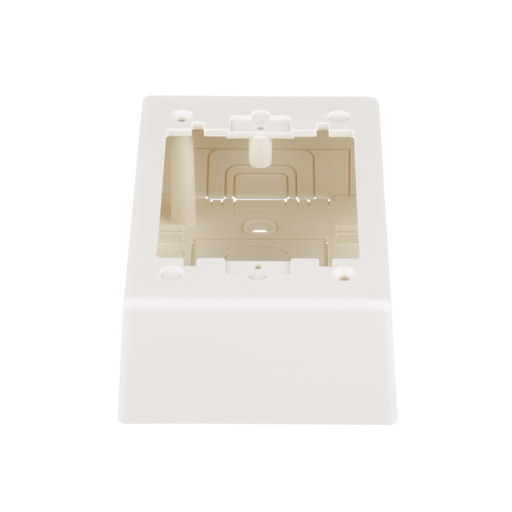

The power rated single gang two-piece screw together outlet box. Box accepts Pan-Way® Screw-On Faceplates or any NEMA standard single gang faceplate. For use withPan-Way® LD profile raceway. 5.19"L x 3.45"W x 1.75"H (131.9mm x 87.7mm x 44.4mm). Breakouts for 1/2", 3/4", or 1" diameter conduit. Off-White

Technical Information

Applications
Non-Locking Blade Plugs, 1-3/8 in Device Opening
Cover Type
NA
Material
PVC
Mounting Type
Front
Number of Gangs
1 Gang
Standard
CSA,RU Listed,RoHS
Type
Open, Power Rated, 2-Unit

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983640713
Color
Off-White
Product UPC
07498364071
UNSPSC
39131711
Weight
0.2400 lb

Dimensions

Depth
45 mm
Height
1-3/4 Inch
Length
5.12 Inch
Overall Length
5.19 in
Width
87.6 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: RoHS Compliant
Prop 65
  • No
