Hubbell HBL223MM PANEL SW, DPDT, MOM ON, SCREW TERM

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL223MM | Codale Part # 3438315
$34.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Momentary Double Pole DoubleThrow Center Off 10A 250V/10A

Technical Information

Action
On/Off/On
Actuator
Bat Handle
Amperage
20 Amp
Applications
2-Circuit On/Off/On
Contact Configuration
DPDT
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
1.5 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Screw Terminal
Tc Connection
Screw Terminal
Type
Standard, Heavy Duty, 3-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585313177
Color
Metallic
Product Series
Double Pole/Double Throw
Product UPC
78358531317
Weight
0.1 lb

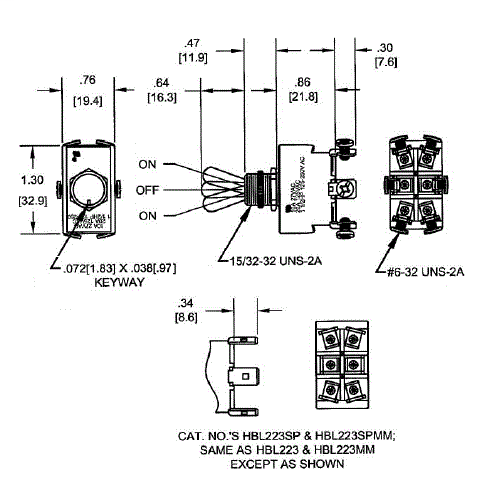

Dimensions

Height
1.3 Inch
Length
2.27 Inch
Width
0.76 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
