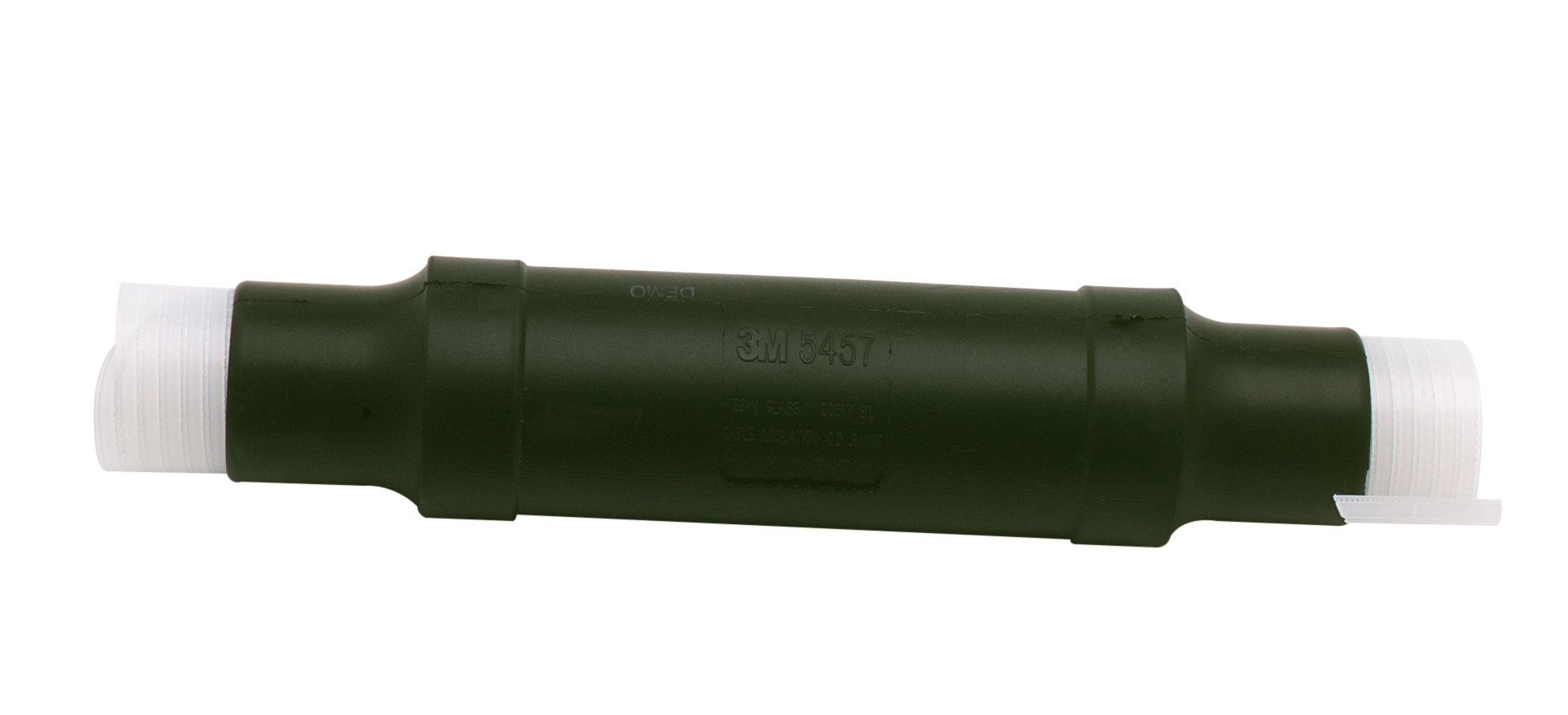

Product image for 3M 5551-3C-AC 5 kV Cold Shrink Rubber Splice Kit, 3 Splices/Kit
Image thumbnail 0
Image thumbnail 1
Email

3M 5551-3C-AC 5 kV Cold Shrink Rubber Splice Kit, 3 Splices/Kit

Manufacturer: 3M | Catalog # 7000006190 | Codale Part # 3439230
$2,757.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
The 3M™ Cold Shrink Rubber Splice Kit contains all the materials (except connectors and optional ground strap) required to construct three single conductor splices on tape shield, wire shield or UniShield® cables.

Technical Information

Applications
Cable Connection
Conductor Size
2/0 AWG
Number of Conductors
3
Splice Type
Inline
Voltage
5 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
051128543177
Color
Black
Product Series
5551-3C-AC Series
Product Type
Splice
Product UPC
05112854317
Weight
7.7500 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Use for splicing 5 kV and 8 kV shielded or non-shielded, armored or non-aromored, solid dielectric, power cables
  • Each kit makes one 3/C splice
  • Cold Shrink Insulator and Jacket: Factory formed EPDM installs quickly and void free
  • Factory formed components: No thickness measuring necessary
  • Constant Force Spring: No soldering required for shield ground connections
  • Shielding Braid Sleeve: Single component provides 2 functions, metallic insulation shield and ground jumper
