Hubbell HBL1223OW3 WAY TOG, IND GRD, 20A 120/277V, OW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1223OW | Codale Part # 3439269
$10.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Toggle, back and side wired

Technical Information

Action
SPDT
Actuator
Toggle
Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Base Material
Thermoset
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Industrial
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Screw Material
Brass
Size
Standard Sized
Style
Three Way
Tc Connection
Back and Side Wired
Toggle Material
Nylon
Type
General Purpose, Standard, 2-Position, Extra Heavy-Duty, 3-Way
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585366203
Color
Office-White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358536620
Weight
0.2000 lb

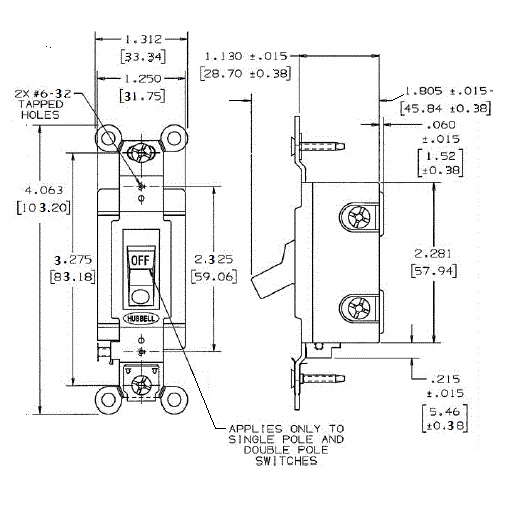

Dimensions

Height
1.87 Inch
Length
4.06 Inch
Width
1.31 in

Certifications and Compliance

Country of Origin
China
Overview
  • Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Office White Toggle
  • Abuse resistant nylon toggle
  • Large brass binding head screws with deep slots
  • Strip gauge for accurate wiring
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
