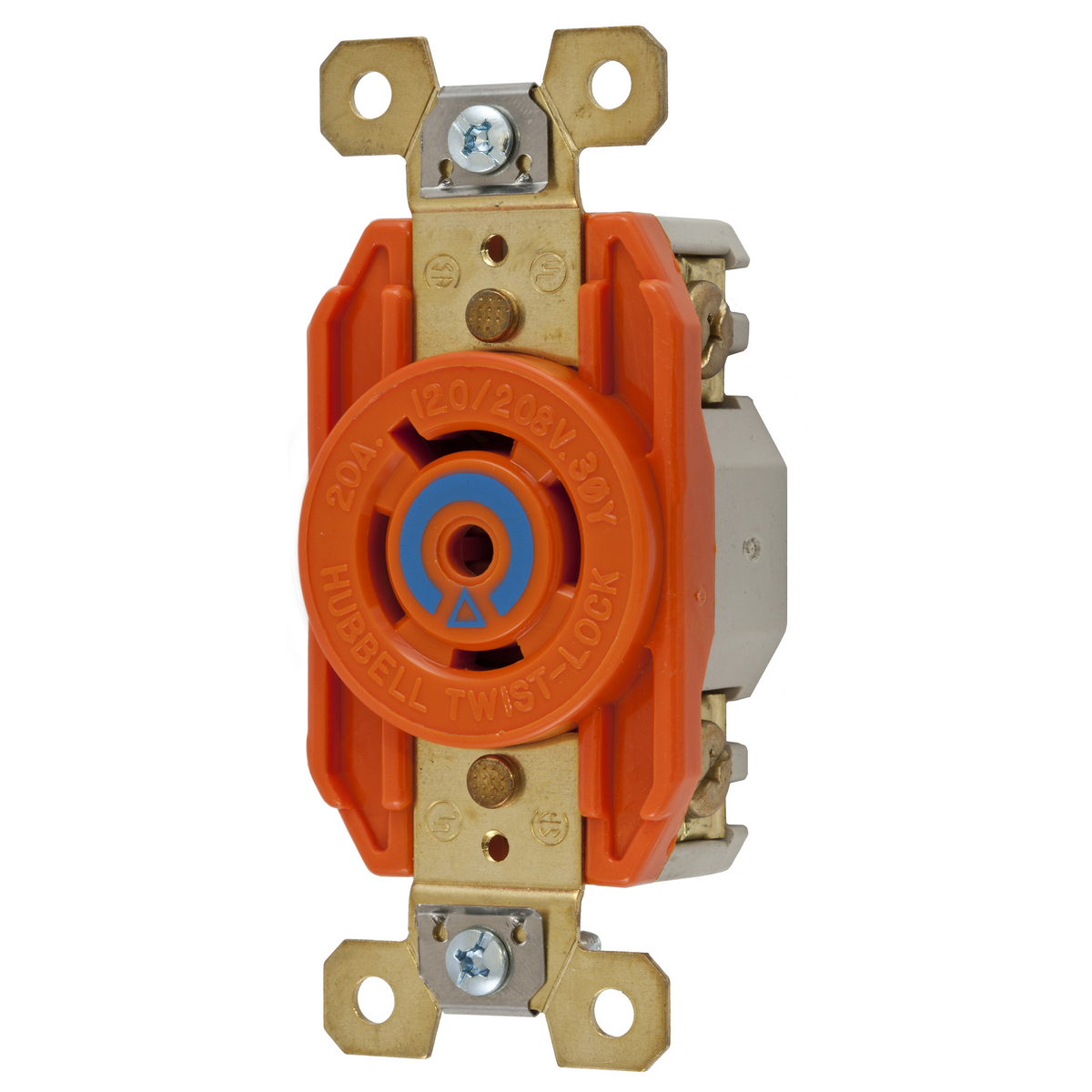

Product image for Hubbell IG2510 Locking Receptacle, IG, 20A 120/208V, L21-20R, OR
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell IG2510 Locking Receptacle, IG, 20A 120/208V, L21-20R, OR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG2510 | Codale Part # 3440931
$102.44/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Twist-Lock® Devices, Single Flush Receptacle 20A, 3 Phase Y 120/208V AC, 4 Pole, 5 Wire Grounding, NEMA L21-20R, Isolated ground, nylon, Orange

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Isolated Ground
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L21-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Heavy Duty
Voltage
120 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585872469
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358587246
Weight
0.30 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.70 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Isolated Ground
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Industry Standard(s)
  • Certified to CSA C22.2 No.42
  • Fed.Spec. W-C-596
  • Listed to UL 498
Related Products
  • HBL2511
  • SB720
  • SS720
  • NP720BK
  • HBL7420
Listings
  • UL 498
  • Fed.Spec. W-C-596
  • CSA C22.2 No.42
Voltage Rating
  • 120 V
  • 208 V
Performance
  • Electrical-Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
  • Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum -40°C (w/o impact)
