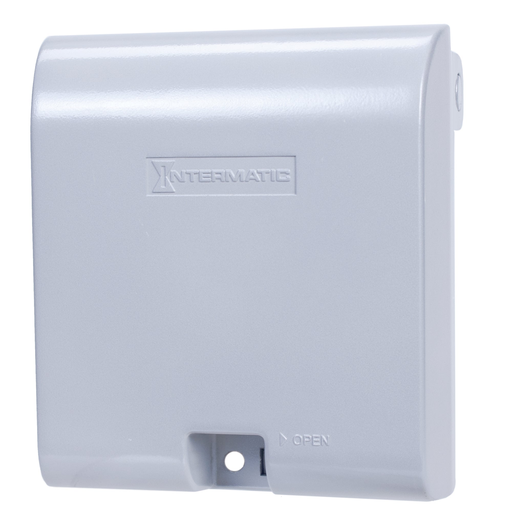

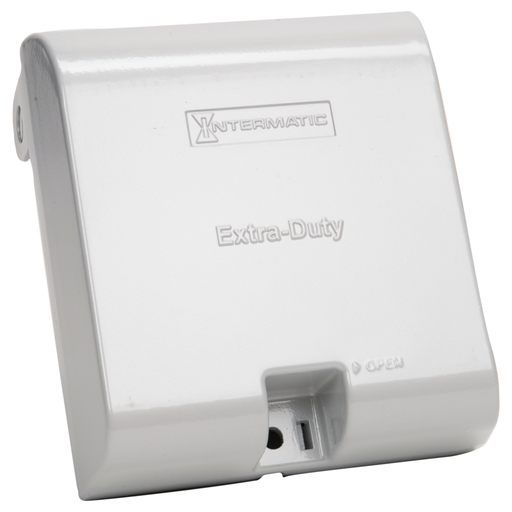

Intermatic WP1030MXD Two Gang Extra-Duty Weatherproof In-Use Receptacle Cover, 3-1/8" Deep, Die Cast Aluminum

Manufacturer: Intermatic | Catalog # WP1030MXD | Codale Part # 3441989
$48.91/ea
ea
Log in or register to view your price, purchase history, and more!
112 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications

Technical Information

Applications
Engine Block Heaters,Receptacle Protection,Walk-in Refrigeration Cooler/Freezer
Cable Size
(2) 14 Gauge, (2) 12 Gauge
Gang Type
Double
Insulation Material
Neoprene Gasket
Material
Aluminum
Mounting Configuration
Mounting screws
Mounting Type
Vertical
Number of Gangs
2 Gang
Number of Outlets
2
Size
3.125 DEPTH X 6.37 HEIGHT X 5.75 WIDTH IN, 79.37 DEPTH X 161.79 HEIGHT X 146.05 WIDTH MM
Temperature Rating
110.0 degrees C
Type
Home Improvement & Commercial Supplies - Wall Plates & Covers

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275130142
Color
Gray
Construction
Heavy-Duty Die-Cast Aluminum
Construction Features
Heavy-Duty Die-Cast Aluminum
Finish
Plastic
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827513014
Shape
Rectangle
Used With
Commercial, home
Weight
1.6200 lb

Dimensions

Depth
3-1/8 Inch
Height
6-3/8 Inch
Length
161.9 mm
Warranty Length
1 yr
Width
5.625 in

Certifications and Compliance

Country of Origin
India
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited
