HCI NCTS4102 N-QCK, THRD, FEM STR P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # NCTS4102 | Codale Part # 3442109
$44.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

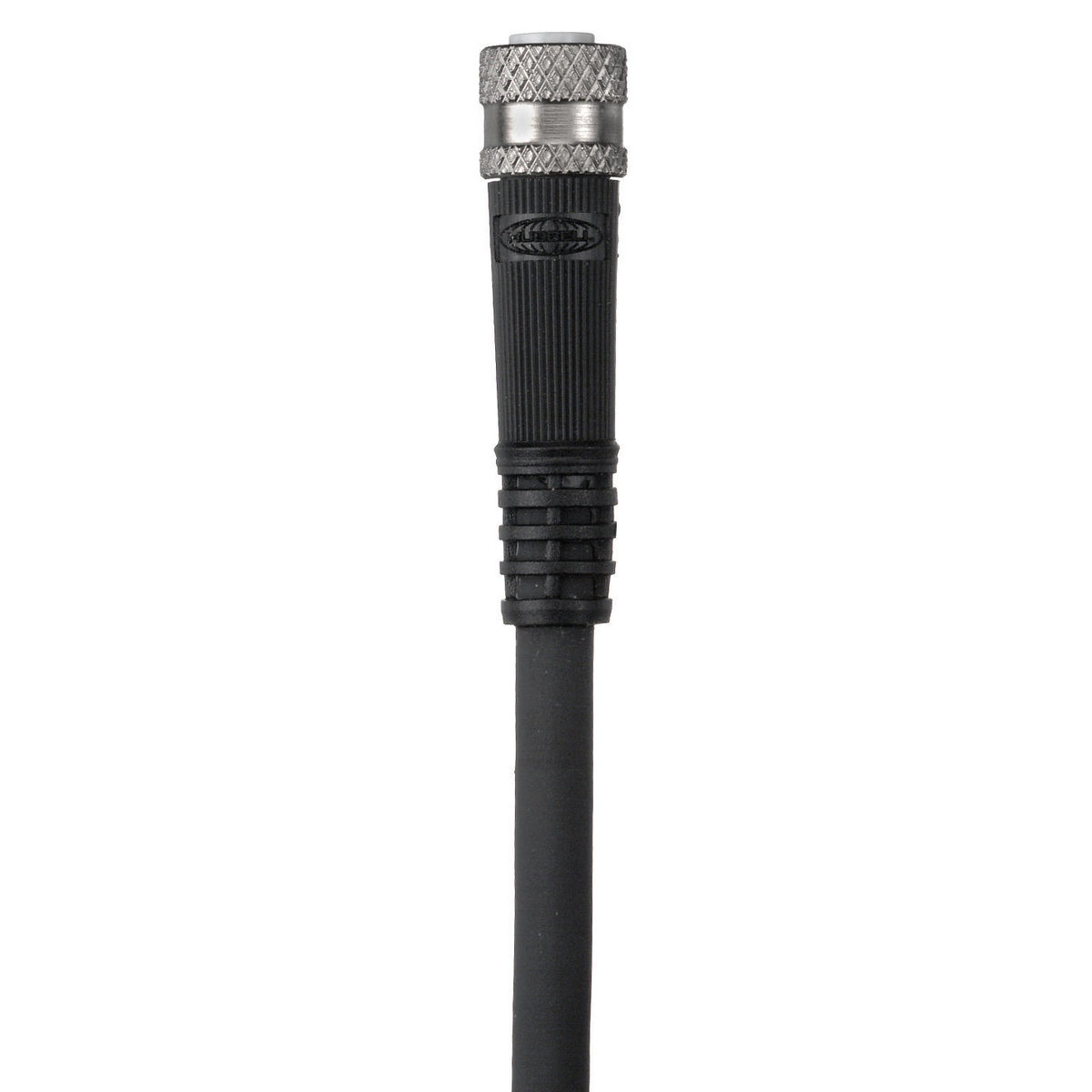

Nano-Quick Control Connectors, Threaded Female Straight Plug, 4P, 2M

Technical Information

Amperage
4 Amp
Applications
Quick Connect/Disconnect Signal and Control
Conductor Material
Copper
Conductor Type
Copper
Contact Material
Beryllium Copper,Brass
Insulation Material
Nylon 6/6
Number of Conductors
4-Pole
Number of Poles
4 Pole
Standard
C22.2 No. 182.3,CSA,CSA C22.2 No. 94.2-07,File No. E1,UL 2238,UL50E
Temperature Rating
-20 To 105 degrees C
Type
Female Straight Plug

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Nano-Quick Signal and Control Devices

General Product Info

12-Digit UPC
783585956145
Color
Black
Product UPC
78358595614
Weight
0.2500 lb

Dimensions

Diameter
0.38 Inch
Height
0.7 Inch
Length
2 m
Width
12.000 in

Certifications and Compliance

Certifications
C22.2 No. 182.3 And CSA C22.2 No. 94,File No. E192071. CSA Certified,UL 2238 And UL50
Country of Origin
USA
Industry Standard(s)
  • CSA Certified, C22.2 No. 182.3 and CSA C22.2 No. 94.2-07
  • UL 2238 and UL50E, File No. E1
Performance
  • Electrical - Amperage - 4A
  • Electrical - Contact Resistance - Less than or Equal to 5 Milliohm
  • Electrical - Isolation Resistance - Greater than or Equal to 1000 Megaohm
  • Electrical - Voltage Rating - 125V AC/75V DC
  • Environmental - Corrosion Resistance - 500 hours salt spray per MIL-STD-1344, Method 1001
  • Environmental - Ingress Protection - IP66 Suitability
  • Environmental - Moisture Protection - UL Type 4, 4X, 12 and 13
  • Environmental - Operating Temperature - PVC Cable: -20° to 105° C
  • Environmental - Vibration Resistance - 10 - 2,000 Hz @15g per MIL-STD1344, Method 2005
Features
  • Black overmold and cable
  • Standard Product
  • O-Rings for moisture protection
  • Insulgrip connector body design
  • Nickel contact plating for superior conductivity
