Hubbell HBL4729VY Locking VAL CONN, 15A 125V, L5-15R, YL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL4729VY | Codale Part # 3442440
$63.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-12 AWG
Connection Type
Pressure Screw
Current
15 Amp
Material
Composite
NEMA
L5-15R
Number of Conductors
2
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585236858
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523685
Weight
0.15 lb

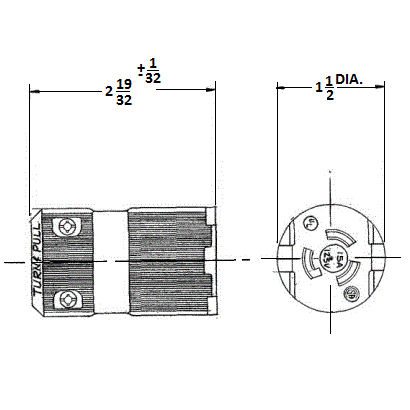

Dimensions

Height
2.59 Inch
Length
1-1/2 Inch
Width
1.50 in

Certifications and Compliance

Country of Origin
USA
Features
  • Two captive multiple drive assembly screws
  • Totally insulated impact and crush resistant nylon body
  • Powerful cord grips prevent conductor slippage and strain on wiring terminals
  • Standard Product
