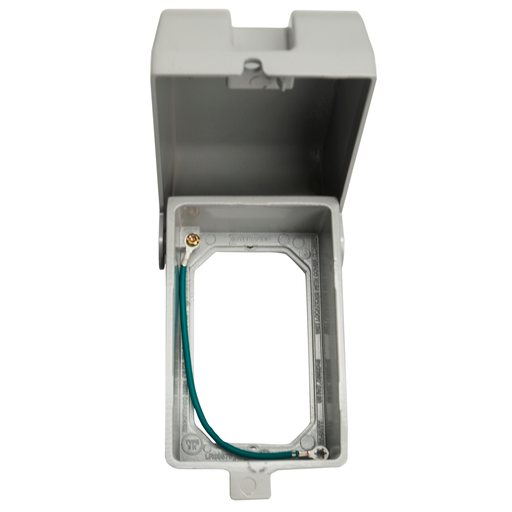

Intermatic WP1010MXD Single Gang Extra-Duty Weatherproof In-Use Receptacle Cover, 3-1/8" Deep, Die Cast Aluminum

Manufacturer: Intermatic | Catalog # WP1010MXD | Codale Part # 3443015
$33.36/ea
ea
Log in or register to view your price, purchase history, and more!
306 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

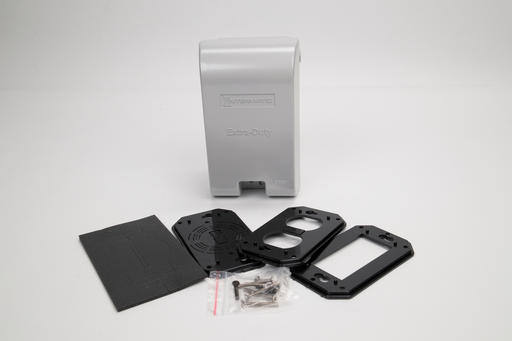

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications

Technical Information

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage
Cable Size
(2) 14 Gauge, (2) 12 Gauge
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Gang Type
Single
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Aluminum
Mounting Configuration
Mounting screws
Mounting Type
Vertical
Number of Gangs
1 Gang
Number of Outlets
1
Size
3.125 DEPTH X 6.37 HEIGHT X 3.87 WIDTH IN, 79.37 DEPTH X 161.79 HEIGHT X 98.29 WIDTH MM
Temperature Rating
48.0 degrees C
Type
Rectangular

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275130135
Color
Gray
Construction
Heavy-Duty Die-Cast Aluminum
Construction Features
Heavy-Duty Die-Cast Aluminum
Finish
Plastic
Product Category
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product Type
Home Improvement & Commercial Supplies - Wall Plates & Covers
Product UPC
07827513013
Shape
Rectangle
Used With
Commercial, home
Weight
1.1400 lb

Dimensions

Depth
79.375 mm
Height
6-3/8 Inch
Length
161.79 mm
Warranty Length
1 yr
Width
98.425 mm

Certifications and Compliance

Country of Origin
India
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited
