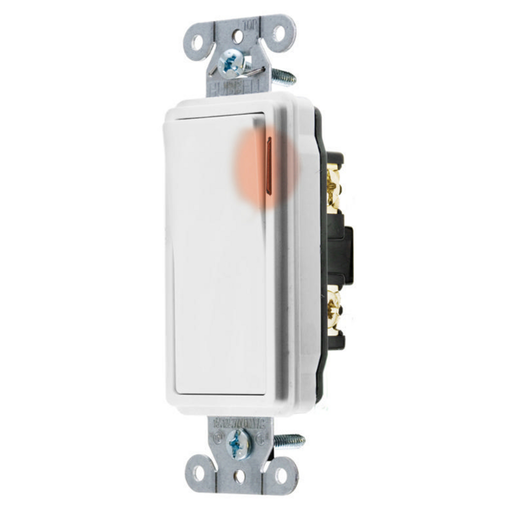

Hubbell DS120PLW SWITCH, DECO SER, SP, 20A 120/277V, PLWH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DS120PLW | Codale Part # 3443612
$55.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Spec Grade, Pilot Light Decorator Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, White

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
20 Amp
Applications
Commercial Heavy Duty
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Indicator
True
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50,000 Cycles
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
4.28 in x 1.43 in x 1.54 in
Standard
UL
Style
Single Pole
Tc Connection
Terminal Screw
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585187877
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Pilot Light
Product UPC
78358518787
Weight
0.2 lb

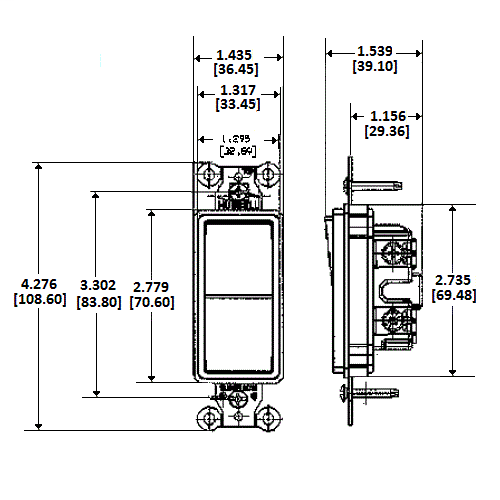

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.43 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
