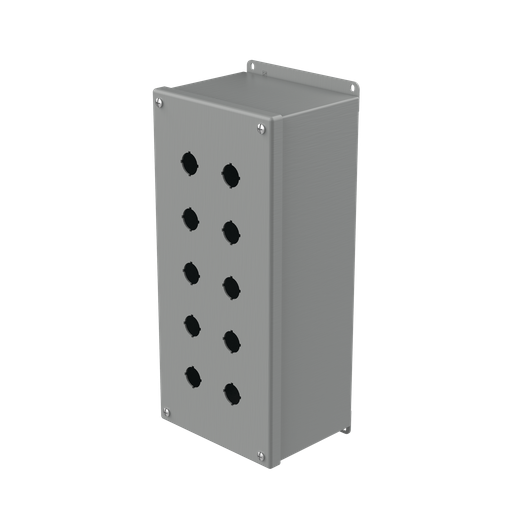

Product image for Hoffman E10PBXM Extra-Deep Pushbutton Enclosures, Type 12, 10PB x 22.5mm, Gray, Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman E10PBXM Extra-Deep Pushbutton Enclosures, Type 12, 10PB x 22.5mm, Gray, Steel

Manufacturer: nVent Hoffman | Catalog # E10PBXM | Codale Part # 3443636
$428.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.

Technical Information

Applications
Extra-Deep Pushbutton Enclosures are Designed to Hold 30.5 mm and 22.5 mm Pushbuttons and Switches, with Added Depth to Accommodate Additional Pushbutton Contact Blocks
Color Coding
ANSI 61
Gauge
14
Material
Steel
Mounting Type
Wall
Number of Holes
10 Hole
Size
10PB x 22.5mm
Standard
CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Type
10-Hole, Extra Deep

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510130442
Color
Gray
Finish
Powder Coated
Product UPC
78351013044
Used With
22.5 mm Pushbutton
Weight
9 lb

Dimensions

Depth
121 mm
Height
356 mm
Hole Size
22.5 mm
Length
15-3/4 Inch
Thickness
1.9 mm
Width
159 mm
DISK UNSPSC
39121326
Features
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes
