HWDK HJ6AY25 JACK, HJ6A, CAT6A, UNI

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HJ6AY25 | Codale Part # 3443871
$504.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

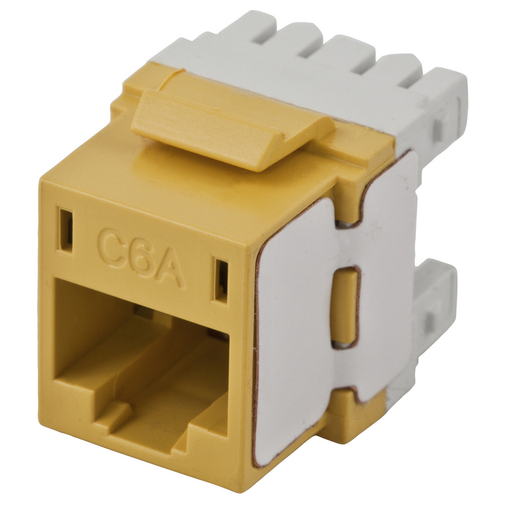

Jack, Keystone, Cat 6A, Universal, Yellow, 25 Pack

Technical Information

Applications
Telephone and Data Distribution Jack
Contact Base Material
Beryllium Copper
Size
Standard Sized Product
Tc Connection
Insulation Displacement
Temperature Rating
Per TIA
Type
NEXTSPEED Ascent Category 6A Jacks

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Copper Work Area

General Product Info

12-Digit UPC
662620214184
Color
Yellow
Environmental Conditions
Indoor Dry unless Protected by Additional Means
Finish
Smooth
Product Series
Cat 6A
Product UPC
66262021418
Weight
0.340 lb

Dimensions

Height
0.7 Inch
Length
11 Inch
Width
8.000 in

Certifications and Compliance

Country of Origin
USA
Industry Standard(s)
  • ANSI/TIA/EIA-568-C.2 Category 6A Component
  • ISO 11801/60603-7-41 Category 6A Component
Performance
  • Electrical - 1.5 dB min NEXT margin over ISO component -
  • Electrical - 4.5db min NEXT margin over TIA 568-C.2 component at 500MHz -
  • Electrical - Enhanced common mode design eliminates residual and reflected NEXT and ANEXT -
  • Electrical - Qualified to 150% of 802.3bt PoE Current Level -
  • General Information - 100% factory tested -
  • General Information - Backward compatible to Category 6, & 5e -
  • General Information - HJ6Axx Jacks are not compatible with RJ11, RJ14 or RJ25 6-position plugs -
  • General Information - Icon Compatible Supporting 606-B requirements -
  • Mechanical - Contact performance confirmed over the full range of ISO/FCC compliant plug -
  • Mechanical - IDC Contact Termination: 10x -
  • Mechanical - Keystone Latching Force: 25 lbs. -
  • Mechanical - Nose Contact Mating Cycles: 2000 -
Features
  • Third Party Verified Category 6A Component Exceeds TIA and ISO Limits
  • Exclusive 1-Punch Termination Reduces Termination Time by 75%
  • Qualified to 150% of 802.3bt PoE Current Level
