Product image for Burndy FD67C6 Stud connector, 4 Holes, 1075 AMP Nominal, 1 1/2"-12 Stud, 9/16"pad holes, 1-3/4" Spacing, 623"length, 3"width, Stud to Flat Bar
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy FD67C6 Stud connector, 4 Holes, 1075 AMP Nominal, 1 1/2"-12 Stud, 9/16"pad holes, 1-3/4" Spacing, 623"length, 3"width, Stud to Flat Bar

Manufacturer: Hubbell-Burndy | Catalog # FD67C6 | Codale Part # 3444285
$631.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

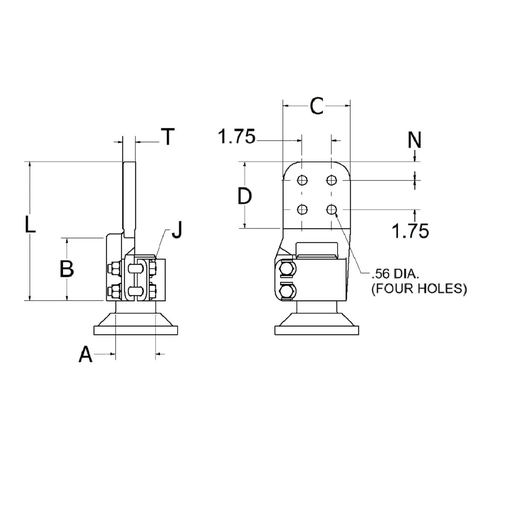

Stud connector, 4 Holes, 1075 AMP Nominal, 1 1/2"-12 Stud, 9/16"pad holes, 1-3/4" Spacing, 6.23"length, 3"width, Stud to Flat Bar

Technical Information

Amperage
1075 Amp
Connection Type
Stud Connector
Material
Copper
Plated?
No
Plating Type
Unplated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810003596
Product UPC
78181000359

Dimensions

Length
6.23 Inch
Overall Length
6.23 in

Certifications and Compliance

Country of Origin
USA
CSA
No
