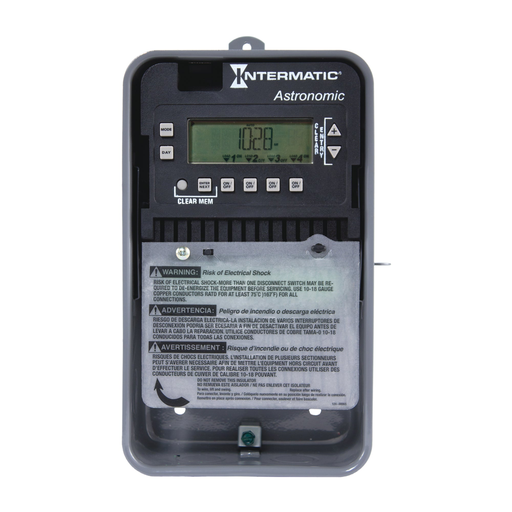

Product image for Intermatic ET8415CR NEMA 3R Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Electronic Time Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Intermatic ET8415CR NEMA 3R Steel Case 7-Day 120 to 277 VAC 60 Hz 30 Amp SPST Electronic Time Switch

Manufacturer: Intermatic | Catalog # ET8415CR | Codale Part # 3444506
$976.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The ET8415CR 4-circuit 7-day Astronomic time switch features independent 7-day programming to provide flexibility for applications where load switching differs each day of the week. This time switch provides to-the-minute programming, 28 ON/28 OFF (56 events) which can be applied to any combination of circuits and days, 100-hour Supercap backup for power loss, and automatic daylight saving time corrections without the need of user interaction. This time switch is housed in a lockable type 3R enclosure to protect from vandalism and unauthorized tampering.

Technical Information

Action
SPST
Amperage
30 Amp
Applications
Indoor Lighting, Outdoor Lighting, Bell Ringing, Billboard Lighting, Gas Stations, Security Lighting
Connection Type
Wire Lead
Contact Configuration
(4) SPST - 1 NO
Contact Rating
30 A at 120/240 VAC (Resistive), 20 A at 28 VDC (Resistive), 30 A at 120/240 VAC (Inductive), 5 A at 120/240 VAC (Tungsten), 20 A at 120 - 277 VAC (Ballast)
Enclosure
Type 3R Steel
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Frequency
50/60 Hz
Material
Steel
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
4
Number of Poles
1 Pole
Operating Cycles
ON-OFF-ON
Operating Temperature
-40 to 155 degrees F, -40 to 68 degrees C
Power Consumption
7 W
Standard
CCSAus Certified,California TITLE 24 Compliant,Title CA 20 Listed
Switch Type
2xDPST,4xSPST
Tc Connection
Wire Lead
Temperature Rating
-40 to 155 degrees F, -40 to 68 degrees C
Type
Astronomic, Electronic
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275125544
Color
Gray
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827512554
Used With
Lighting
Weight
3.4200 lb

Dimensions

Depth
3-5/8 Inch
Height
10-1/8 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Auto-voltage operation from 120-277 VAC
  • Up to 56 fixed events and 8 Astronomic events that can be combined
  • Allows independent dusk/dawn settings for each circuit
  • Temporary override or permanent manual override
  • Automatic Daylight Saving Time adjustment
  • Configurable outputs allow the control of various voltages and applications
  • 100-hour supercapacitor eliminates the need for batteries
  • NA
