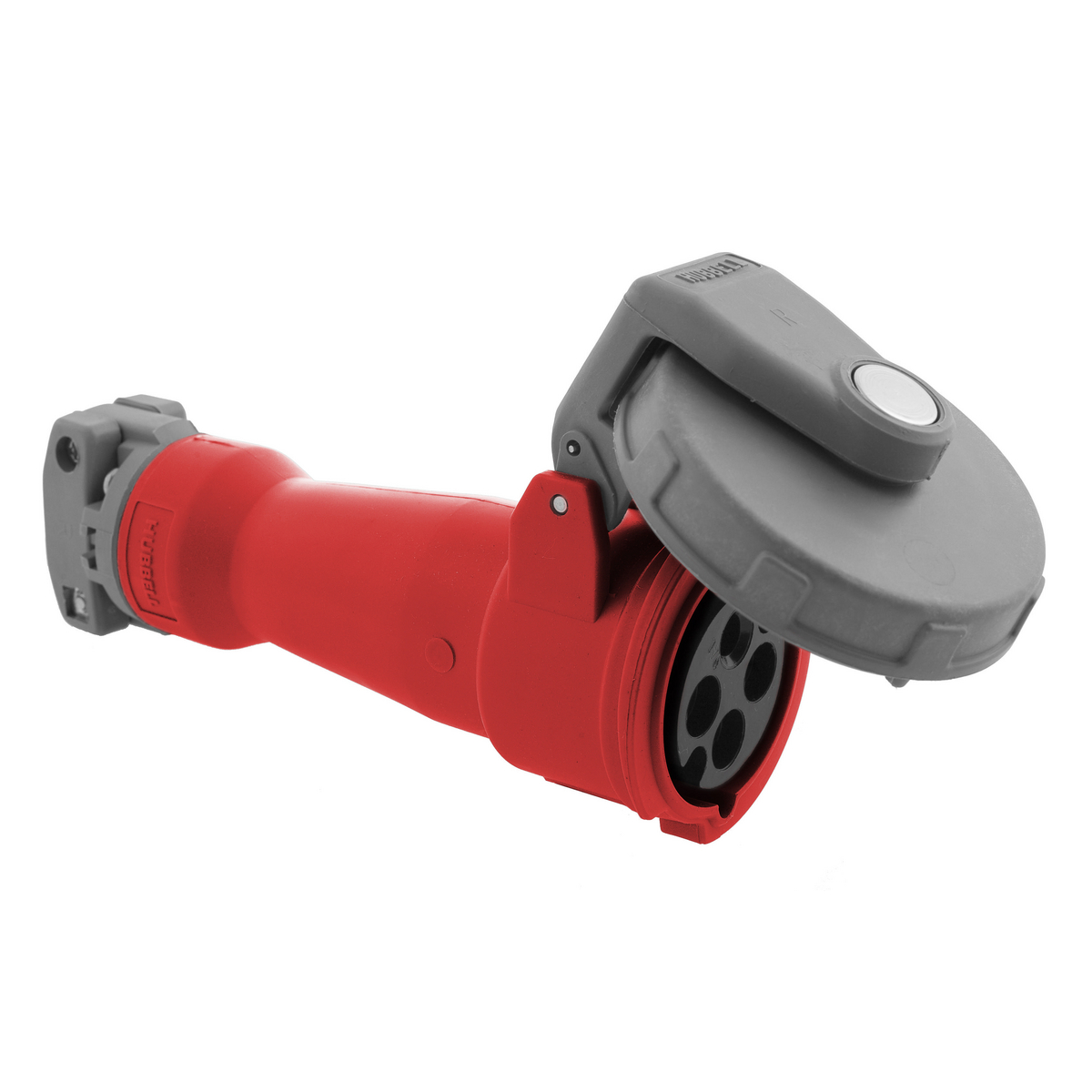

Hubbell HBL432C6W PS, IEC, CONN, 3P4W, 32A 380-415V, w/T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL432C6W | Codale Part # 3444739
$366.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 32A 380/415V, 3-Pole 4-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
32 Amp
Applications
Heavy duty, high leverage diagonal cutter
Current
32 Amp
Number of Conductors
4
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Plate
Temperature Rating
-40 to 75 degrees C, -25 to 75 %u%
Type
Screwless, Standard
Voltage
380-415 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585404684
Color
Red
Product Series
HBL Heavy Duty
Product UPC
78358540468
Weight
1.9 lb

Dimensions

Height
4.12 Inch
Length
9.81 Inch
Width
4.810 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard 498 CSA Certified To CSA Spec. C22.2 No. 182.2 UL Classified To IEC 309-1 And IEC 309-2.,UL Standard UL1682 & UL1686C2
Country of Origin
Puerto Rico
Features
  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Watertight
