Lutron MACL-153M-WH 3-Way 150W CFL/LED MAESTRO Dimmer - White

Manufacturer: Lutron Electronics | Catalog # MACL-153M-WH | Codale Part # 3445177
$44.88/ea
ea
Log in or register to view your price, purchase history, and more!
24 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Maestro LED+ Multiloc, Ed Box White

Technical Information

Actuator
Tapswitch
Applications
Lighting
Bulb Compatibility
Dimmable CFLs,Dimmable LEDs,Halogens,Incandescents
Connection Type
Screw Terminal,Screw-Type Terminals
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
50 Hz
Insulation Material
Plastic
Material
Metal
Max Wattage
150 W
Mounting Type
Wallbox
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Rating
600 W

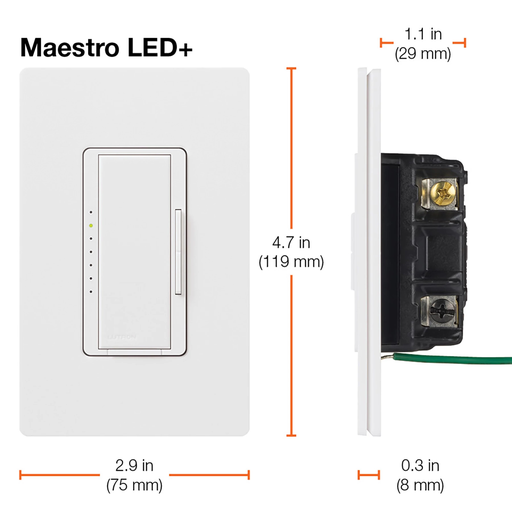

Size
75 in
Standard
UL CSA NOM
Tc Connection
Screw terminals
Type
Digital Fade Dimmer,Multi-Location/3-Way/Single-Pole
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
784276010658
Color
White
Environmental Conditions
0 To 90% Humidity,Indoor Use Only,Non-condensing
Finish
Gloss
Product UPC
78427601065
Weight
0.2800 lb

Certifications and Compliance

Country of Origin
Mexico
Features
  • Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
  • Provides over 250 lighting levels so you can create the perfect light for any activity
  • Works with up to 150 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
  • Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
  • Can be used in single-pole or 3-Way/multi-location dimming applications (up to 10 locations, Maestro companion dimmer MA-RR-XX required)
  • Easy-to-operate tap switch turns lights on/off to favorite light level. Rocker dims and brightens. Advanced programming settings for features such as customizable delayed-fade-to off
  • Installs in as little as 15 minutes in homes of all ages NO NEUTRAL REQUIRED
  • Includes (1) Maestro LED+ (formerly C.L) dimmer switch; coordinating wallplate sold separately
  • Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
  • 100% factory tested
  • Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
  • Provides true dimming from each location (with companion dimmers)
  • Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Standards and Certifications
  • UL
  • CSA
  • NOM
