Hubbell HBL2415SW 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L21-20P Gray Watertight Locking Flanged Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2415SW | Codale Part # 3446010
$253.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Composite
NEMA
L14-20P
Number of Conductors
4
Number of Phases
1 Phase
Number of Poles
3-3 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Standard, Single, Locking, 3-Pole
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Watertight Safety-Shroud®

General Product Info

12-Digit UPC
783585231327
Color
Gray and White
Environmental Conditions
Watertight
Product UPC
78358523132
Weight
0.65 lb

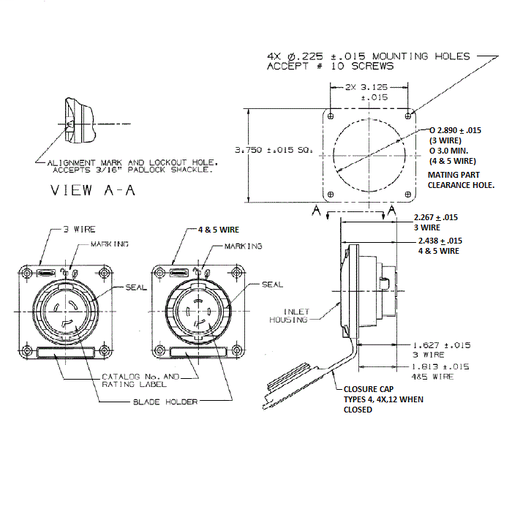

Dimensions

Height
2.44 Inch
Length
3-3/4 Inch
Width
3.300 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Standard Product
