Fluke Electronics FLUKE-324 600 VAC/VDC 400 Amp AC Clamp Meter

Manufacturer: Fluke Instruments | Catalog # FLUKE-324 | Codale Part # 3446962
$690.09/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
1 RMS Clamp Meter, Model: 324 Series, Voltage Rating: 600 VAC/VDC, Amperage Rating: 40 - 400 AMP, Resistance: 400 - 4000 OHM, Capacitance: 100 - 1000 MFD, Accuracy: 1.5 PCT Plus/Minus 5 Digits (45 - 400 HZ) For AC Current, 1.5 PCT Plus/Minus 5 Digits For AC Voltage, 1 PCT Plus/Minus 5 Digits For DC Voltage, 1 PCT Plus/Minus 5 Digits Resistance, Display: Large, Temperature Rating: -10 To 400 DEG C Contact Temperature, Peak Hold: Yes, Dimensions: 207 IN Height X 75 IN Width X 34 IN Depth, Continuity: Less Than Or Equal To 30 OHM, Includes: Test leads, Soft case, User's manual, CAT IV 300V/CAT III 600 V Safety Rating, For Electrical Troubleshooting

Technical Information

Accuracy
1.5 % 5 digits, (45 Hz to 400 Hz); Note: Add 2 % for position sensitivity
Applications
Overall troubleshooting by commercial and residential electricians, including temperature and capacitance measurements
Enclosure
Hard Plastic
Enclosure Material
Hard Plastic
Operating Temperature
-10 degrees C to +50 degrees C
Type
Clamp Meter
Voltage
600 Volt

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969623759
Product UPC
09596962375
Weight
1.2000 lb

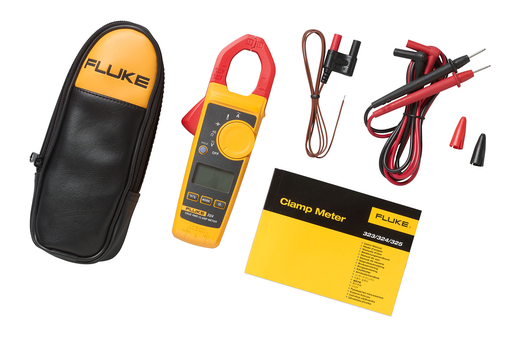

Includes
  • Fluke 324 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case
Other Useful Features
  • CAT III 600 V, CAT IV 300 V safety rating
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures AC/DC current up to 400 A
  • Measures AC/DC voltage to 600V
  • Measures resistance to 4k? with continuity detection ? 30?
  • Measures temperature from -10C to 400C
  • Measures capacitance to 1000?F
  • Backlight and hold function captures a reading on the display
  • Comes with a two-year warranty and soft carrying case
  • Fluke 324 True-RMS Clamp Meter
  • TL75 Test Leads
  • Type K Thermocouple
  • Two AAA Batteries (Installed)
  • Soft Case
Key Features
  • Rugged, reliable basic True-RMS clamp meter
  • Measure AC current up to 400 A, AC/DC voltage to 600V
  • Measure resistance up to 4k?, continuity detection ? 30?
  • Additions from 323 Clamp: Temperature, Capacitance, Backlight
  • It does everything a HVAC or Maintenance Tech would need. Out of 12 guys I work with 9 of them had the 324 - Thomas
Product Overview
  • The Fluke 324 True-RMS Clamp Meter is a reliable, solid troubleshooting tool for commercial and residential electricians, featuring True-RMS measurements, a slim design for easy transport and use, and a large display for efficient troubleshooting. With the addition of Temperature and Capacitance, it has everything an HVAC technician could need.
