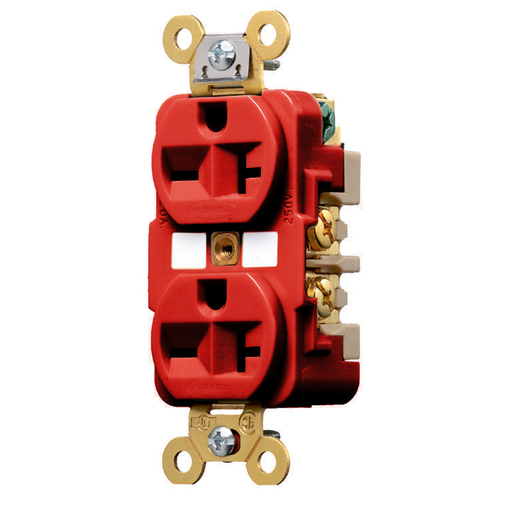

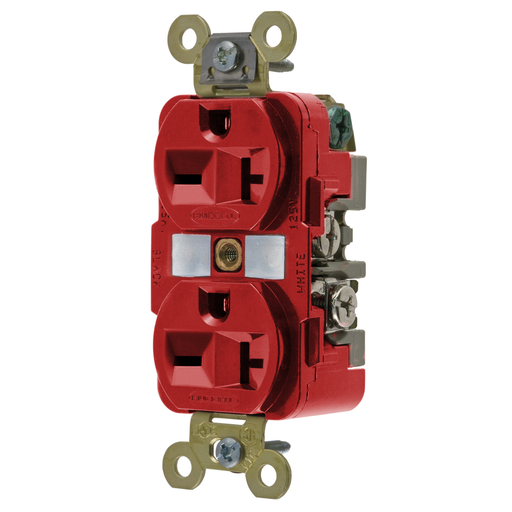

Hubbell HBL5462RDUP Receptacle, IND GRD, 20A 250V, 6-20R, RD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5462R | Codale Part # 3447004
$23.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Red, Single Pack

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Base Material
PBT,PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
Top: UL 94V-2, Base: UL 94V-0
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
6-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Plated Brass
Size
Standard Sized
Standard
CSA 22.2,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Standard
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
14-10 AWG
Wire Type
Grounding

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585357720
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358535772
Weight
0.25 lb

Dimensions

Height
1.54 Inch
Length
4.16 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
USA
Features
  • Deep nylon body design delivers increased impact resistance
  • One-piece brass integral ground strap
  • Finder Groove Face
  • Deep body design with circuit ID face
  • Self Grounding
