Burndy KVSW34 Mechanical Connector For CUWeld and Copper Supplied with a CU alloy Spacer that seperates run and tap conductors, Recommended Torque: 375 LBS

Manufacturer: Hubbell-Burndy | Catalog # KVSW34 | Codale Part # 3447410
$98.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Similiar to OKLIP Type KVS except for a high copper alloy spacer that separates run and tap conductors. Provides high contact pressure, confines conductor strands, and assures vibration-proof connection.

Technical Information

Applications
For Copper And Copperweld Conductors
Conductor Type
CU C Str-Size
Material
Copper
Plated?
No
Plating Type
Unplated
Type
KVSW

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810067307
Finish
Copper
Product UPC
78181006730
Weight
0.8700 lb

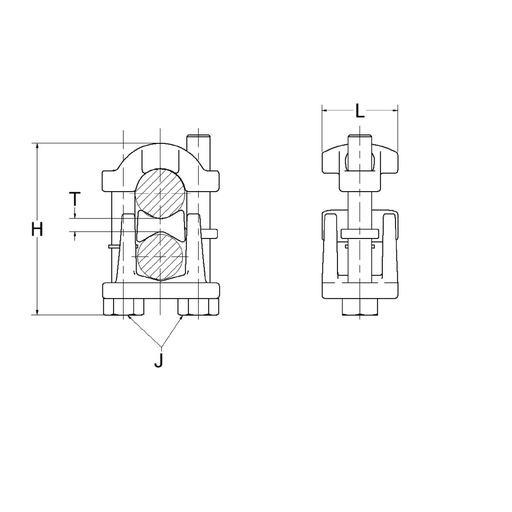

Dimensions

Height
3.06 Inch
Length
1.34 Inch
Overall Length
1.34 in
Width
2.20 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Type KVS Except For A High Copper Alloy Spacer That Separates Run And Tap Conductors, Provides High Contact Pressure, Confines Conductor Strands, And Assures Vibration-Proof Connection, Longer Peened Bolt, Permits Swivel Action For Easier Installation, Silicon Bronze DURIUM Hardware, Conductor Type: Run: Copperweld, Commercial Stranded Copper, Installation Torque: 375 IN-LB, Conductor Spacer: Yes
