Panduit HSTTA150-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 1.5" to .51" ID

Manufacturer: PANDUIT | Catalog # HSTTA150-48-5 | Codale Part # 3450966
$106.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet

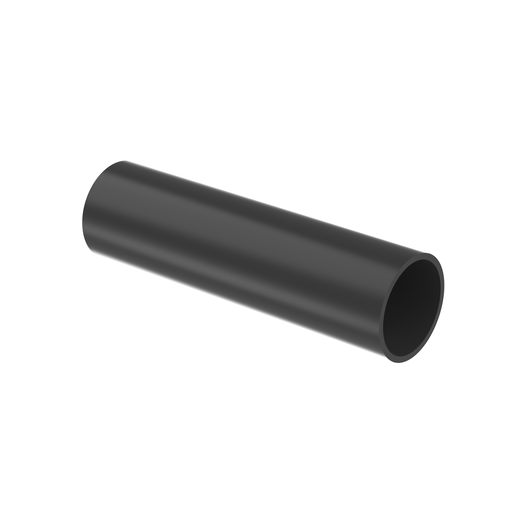

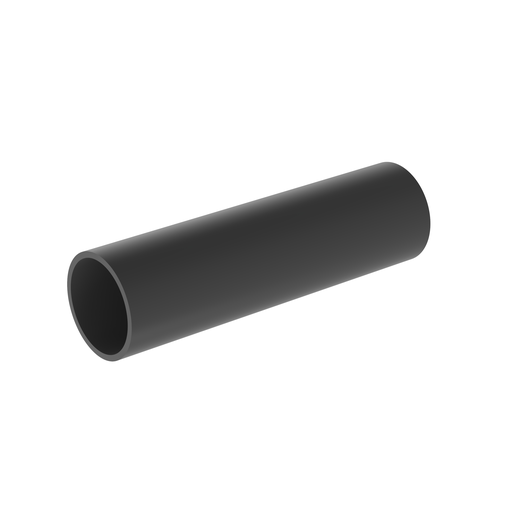

The HSTTA150-48-5 Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 1.5" (38.1 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-67 to -230 degrees F
Type
Adhesive-Lined, Standard

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369713
Color
Black
Product UPC
07498336971
Weight
2.7000 lb

Dimensions

Inside Diameter
12.9 mm
Outside Diameter
38.1 mm
Overall Length
4 ft
Thickness
2.5 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
South Korea
Standards and Certifications
  • Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
