PAN HSTTA150-48-Q Damp-Shrink™ HSTT

Manufacturer: Panduit | Catalog # HSTTA150-48-Q | Codale Part # 3450967
$89.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet

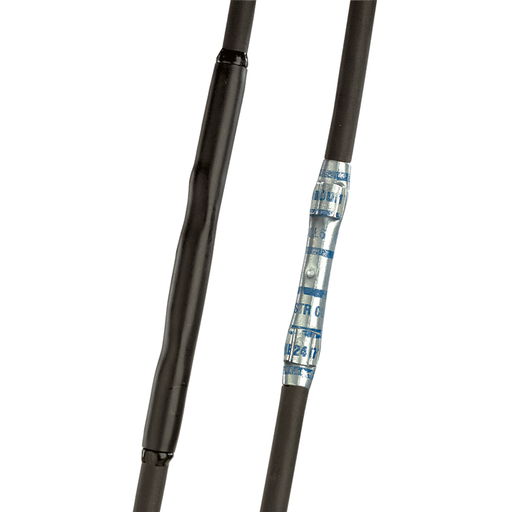

The HSTTA150-48-Q Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 1.5" (38.1 mm) diameter, 4' (1.2 m) length. Color Black. 25 per package

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Type
Heat Shrink Tubing

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983784790
Color
Black
Product UPC
07498378479
Weight
11.0000 lb

Dimensions

Inside Diameter
0.510 IN
Outside Diameter
1.5 in
Overall Length
4 ft
Thickness
0.1 IN

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
South Korea,USA
Standards and Certifications
  • Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
