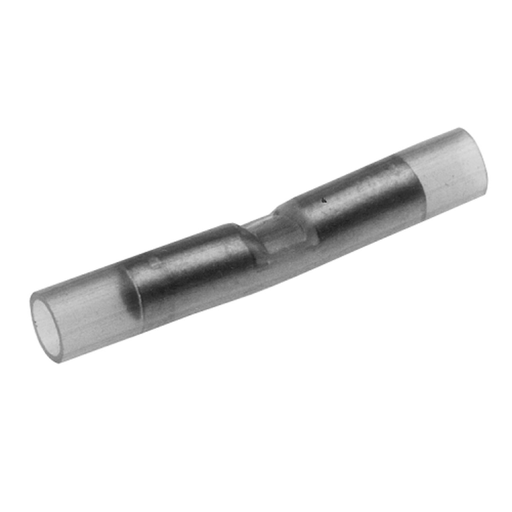

Product image for Burndy SP16 Copper Splice, 22-16 AWG, 1" Splice Length, Vinyl Insulated, Tin Plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy SP16 Copper Splice, 22-16 AWG, 1" Splice Length, Vinyl Insulated, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # SP16 | Codale Part # 3451141
$102.52/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Copper Splice, 22-16 AWG, 1" Splice Length, Vinyl Insulated, Tin Plated

Technical Information

Applications
Accommodating a Broad Range of 600 V Cables
Color Coding
Red
Conductor Size
22-16 AWG
Connection Type
Seamless Butt Splice
Contact Material
Electrolytic Copper
Insulated?
Yes
Insulation Type
Polyvinylchloride
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Size
1 in
Strip Length
1/4 in
Temperature Rating
105 degrees C
Type
Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Vinylink™

General Product Info

12-Digit UPC
781810714010
Color
Red
Finish
Electro-Tin Plated
Product UPC
78181071401
Used With
Round, Solid Core and Stranded Conductors
Weight
0.0030 lb

Dimensions

Height
0.15 Inch
Length
1 Inch
Overall Length
25 mm
Width
0.15 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Manufactured from seamless electrolytic copper tubing to provide maximum conductivity and tensile strength in a high quality design with no seams to split
  • Funnel entry for easy wire insertion
  • Electro-tin plating provides durable, long lasting resistance to corrosion
