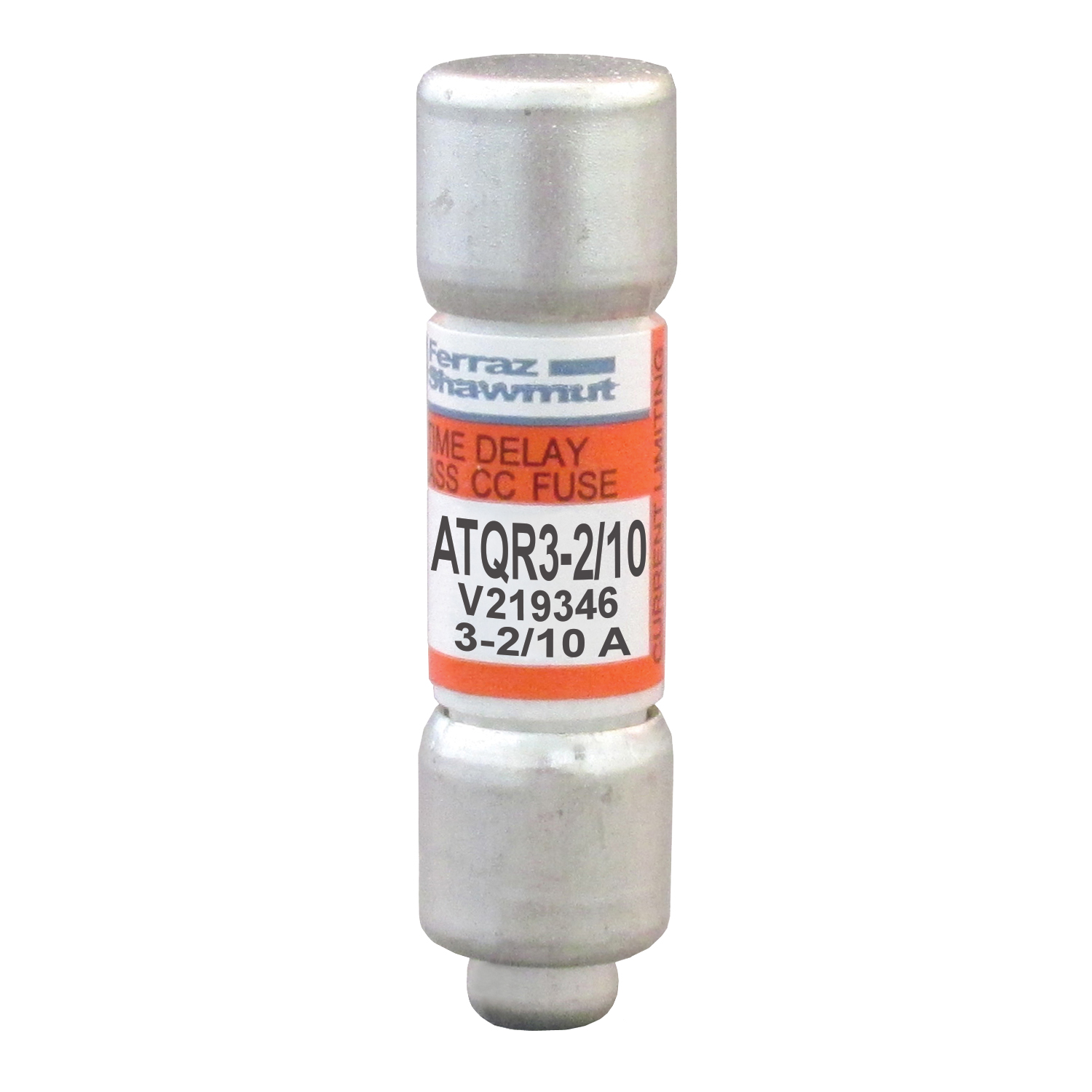

Product image for Mersen ATQR3-2/10 3-2/10 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Mersen ATQR3-2/10 3-2/10 Amp 600 Volt Glass Melamine Laminated Class CC Rejection Time Delay Fuse

Manufacturer: Mersen | Catalog # ATQR3-2/10 | Codale Part # 3451562
$55.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids, and similar inductive loads. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems

Technical Information

Amperage
3.2 Amp
Applications
Control Transformers Solenoids Inductive Loads Lighting Heaters General-Purpose Loads
Frequency
50 Hz
Fuse Class
Class CC
Insulation Material
GMG
Interrupt Rating
200 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Rated Voltage DC
300 V
Tc Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Time Delay
Voltage
600 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000, SmartSpot

General Product Info

12-Digit UPC
782001906542
Class
CC
Product UPC
78200190654
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1-1/2 Inch
Approvals & Standards
  • UL listed to standard 248-4 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.4
Applications
  • Control transformers
  • Solenoids
  • Inductive loads
  • Lighting, heating & general-purpose loads
Features
  • Time-delay for control transformer inrush loads without nuisance opening
  • Highly current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High visibility orange label ensures instant brand recognition, and simplifies replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation
