Burndy TP1410 Copper Terminal, Ring Tongue, 16-14 AWG, #8-#10 Stud, Vinyl Insulated, Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # TP1410 | Codale Part # 3454080
$108.76/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Copper Terminal, Ring Tongue, 16-14 AWG, #8-#10 Stud, Vinyl Insulated, Tin Plated.

Technical Information

Applications
Commercial and Light Duty Industrial Control and Power Circuit Applications
Color Coding
Blue
Conductor Size
16-14 AWG
Connection Type
Ring Terminal
Insulation Material
Vinyl
Insulation Type
Vinyl
Material
Copper
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Temperature Rating
105 degrees C
Type
TP, Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
Vinylug™

General Product Info

12-Digit UPC
781810712849
Color
Blue
Finish
Electro-Tin Plated
Product UPC
78181071284
Weight
0.0020 lb

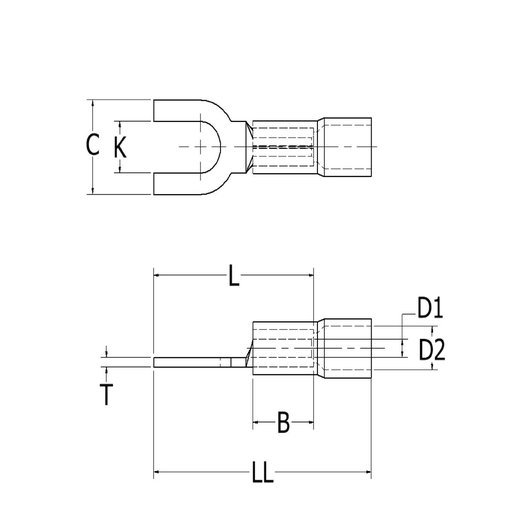

Dimensions

Height
0.19 Inch
Hole Size
0.20 in
Length
0.91 Inch
Overall Length
23 mm
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Expanded insulation support accepts standard and large wire diameters providing lower inventory requirements and greater flexibility
  • Funnel entry for easy wire insertion
  • Manufactured of pure electrolytic copper to provide maximum conductivity, low resistance and ductility for excellent crimp forming properties
  • Deep V groove serrations in the inner barrel provides added holding strength and better conductivity
