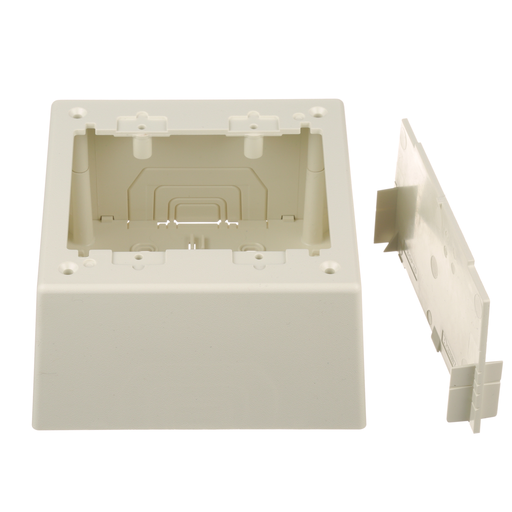

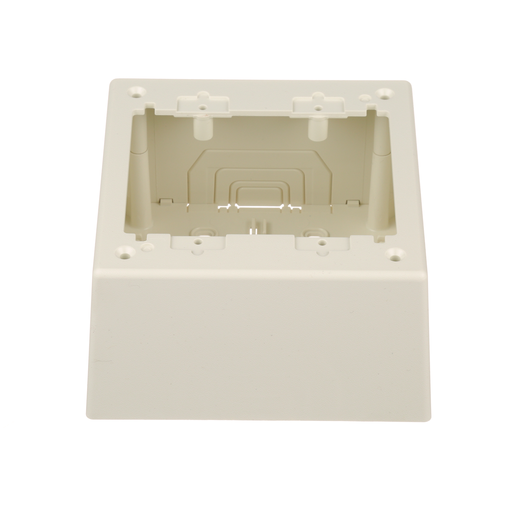

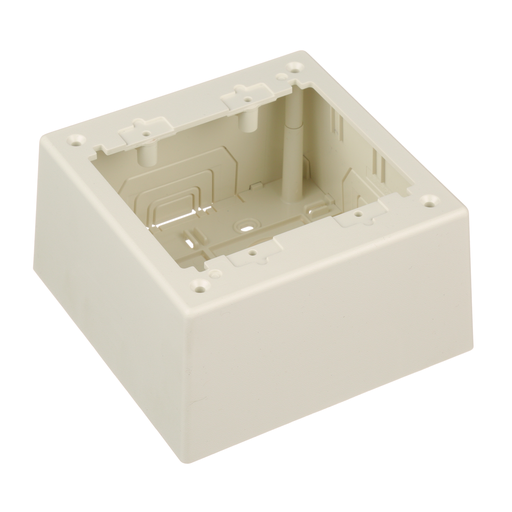

Panduit JBP2DIW Double-Gang Power Rated 2-Piece Deep Outlet Box

Manufacturer: Panduit | Catalog # JBP2DIW | Codale Part # 345416
$28.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The power rated junction box is designed to be used with any Panduit LD profile surface raceway. It is compatible with standard double gang NEMA screw-on faceplates. It is a double gang box and measures 5.19 inches L x 5.19 inches W x 2.75 inches H (131.9mm x 131.9mm x 69.8mm). It is made of PVC material and is off white.

Technical Information

Applications
Box Accepts Pan-Way® Screw-On Faceplates or any NEMA Standard Single Gang Faceplate
Cable Entry
1/2 in or 3/4 in or 1 in Knockout
Cover Type
NA
Material
PVC
Mounting Type
Front, Screw
Number of Gangs
2 Gang
Type
Power Rated, 2-Unit

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983702930
Color
Off-White
Product UPC
07498370293
Used With
Raceway
Weight
0.5000 lb

Dimensions

Height
2-3/4 Inch
Length
132.6 mm
Overall Length
5.19 in
Width
5.22 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: RoHS Compliant
